You open the case back, swap in a fresh silver oxide battery, and wait for the familiar tick. Nothing happens. When a standard battery change fails to revive a dead timepiece, watch owners confront a frustrating reality: total movement failure. A dead caliber forces a difficult decision. You must choose whether to abandon the watch, pay for professional servicing, or source and install a replacement unit yourself. The technical opacity surrounding caliber identification, dimensional compatibility, and parts sourcing often paralyzes even enthusiastic hobbyists.
Successful replacement relies entirely on precise dimensional matching. You cannot simply buy any mechanism and expect it to fit. You must understand specific caliber specifications, measure hand hole dimensions, and objectively evaluate the repair viability of the timepiece. Mastering these technical evaluation steps transforms a seemingly impossible repair into a straightforward restoration project.
Identification is Non-Negotiable: Sourcing a replacement requires matching the exact manufacturer caliber or an exact dimensional equivalent, not just the brand of the watch.
Component Compatibility: Hand hole sizes, dial feet positions, and date wheel alignments must align perfectly; near-matches will result in failed installations.
Mechanical Conversions are High-Risk: Swapping a mechanical movement for a quartz equivalent introduces severe structural challenges regarding case fitting and dial mounting.
Economic Viability: For entry-level fashion watches, the labor and tooling costs of DIY replacement often exceed the watch's value, whereas restoring sentimental pieces or high-end luxury quartz watches justifies the investment.
Before ordering parts, you must establish the baseline indicators of a dead mechanism versus a simple power delivery issue. A watch is officially deemed beyond economical repair when the internal circuitry fails or the gear train suffers irreversible physical damage. Accurate diagnosis prevents wasting time on a unit that cannot be salvaged. We use specific bench tests to isolate the exact point of failure.
A standard silver oxide watch cell maintains a reliable lifecycle of one to two years. When a watch stops, the first step is always testing the existing battery voltage under load using a dedicated multimeter. Set your multimeter to the 2V DC range. A healthy cell should read at least 1.55 volts. If the battery is depleted, replacing it usually solves the problem. However, neglecting a dead battery inside a watch case invites disaster. Depleted cells eventually leak corrosive acid. This acid destroys the delicate copper traces on the circuit board and dissolves the protective coating on the copper coil.
Once acid damage occurs, a full quartz watch movement replacement becomes mandatory. To confirm electronic failure without visible acid, professionals use a quartz pulse tester. This device detects the magnetic pulse generated by the circuit. If the tester registers a pulse but the hands remain stationary, the quartz watch motor is receiving power, but the mechanical gear train is jammed. If there is no pulse, the integrated circuit or coil has failed completely. You can further verify a dead coil by setting a multimeter to 20k Ohms and probing the coil contacts; an infinite reading indicates a broken wire.
Watch forums frequently circulate a persistent myth regarding luxury timepieces. Many claim that high-end brands require a completely new mechanism every second or third battery change. This industry misconception drives unnecessary anxiety and repair expenditures. In reality, a well-sealed, high-quality caliber does not have a predetermined expiration date tied to battery cycles.
The actual lifespan of a premium caliber spans decades if the case gaskets remain intact and moisture is kept out. Replacement is only justified when specific mechanical wear occurs. For example, if the synthetic oils dry out, friction increases, causing the stepper motor to consume excessive power. This leads to drastically shortened battery life. Only when cleaning and re-lubricating the existing unit proves more labor-intensive than swapping it out does a full replacement become the logical path.
You cannot force a square peg into a round hole, nor can you force a thick caliber into a slim dress watch case. Breaking down the critical physical dimensions dictates whether a replacement unit will successfully fit inside an existing watch case. Precision is non-negotiable on the workbench.
Horology utilizes a traditional measurement system known as the Ligne (denoted by the symbol ‴). One Ligne equals exactly 2.2558 millimeters. Manufacturers categorize calibers by their Ligne size to indicate the overall diameter of the base plate. Common sizes include 6¾ x 8 ‴ for ladies' watches and 11½ ‴ for standard men's watches. When sourcing a replacement, matching the Ligne size ensures the unit fits snugly within the case's internal retaining ring.
Overall thickness is equally critical. A deviation of even 0.1mm in movement thickness creates severe clearance issues. If the new unit is too thick, the case back will not thread or snap shut. If the unit sits too high, the central pinions will push the hands directly against the underside of the sapphire or mineral crystal, stopping the watch instantly. You must measure the original unit with digital calipers to guarantee an exact match.
Watch hands are friction-fit onto the central pinions. These pinions have highly specific microscopic diameters. Standard measurements for hour, minute, and sweep second hands often follow formats like 1.20mm for the hour, 0.70mm for the minute, and 0.17mm for the seconds. If your replacement unit features a 1.50mm hour wheel, your original hands will simply fall off. Conversely, trying to press a 1.10mm hand onto a 1.20mm post will split the hand tube.
Furthermore, pinion height dictates how far the posts protrude through the dial. A thick, textured dial requires tall pinions to ensure the hands clear the applied hour markers. Installing a low-pinion mechanism behind a thick dial guarantees the hands will drag against the surface, scratching the finish and stalling the motor. Manufacturers often denote pinion heights with numbers like H1, H2, or H3.

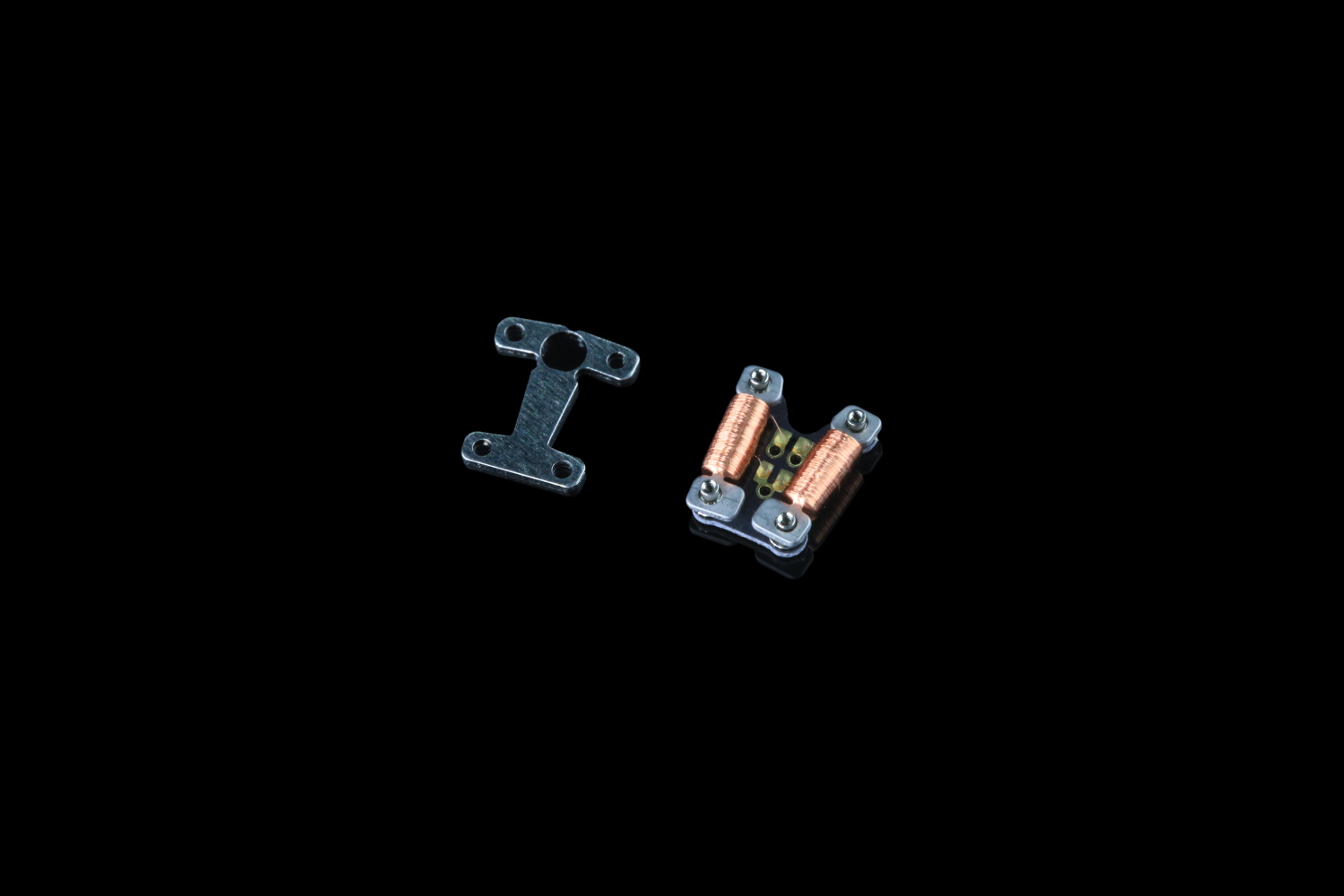

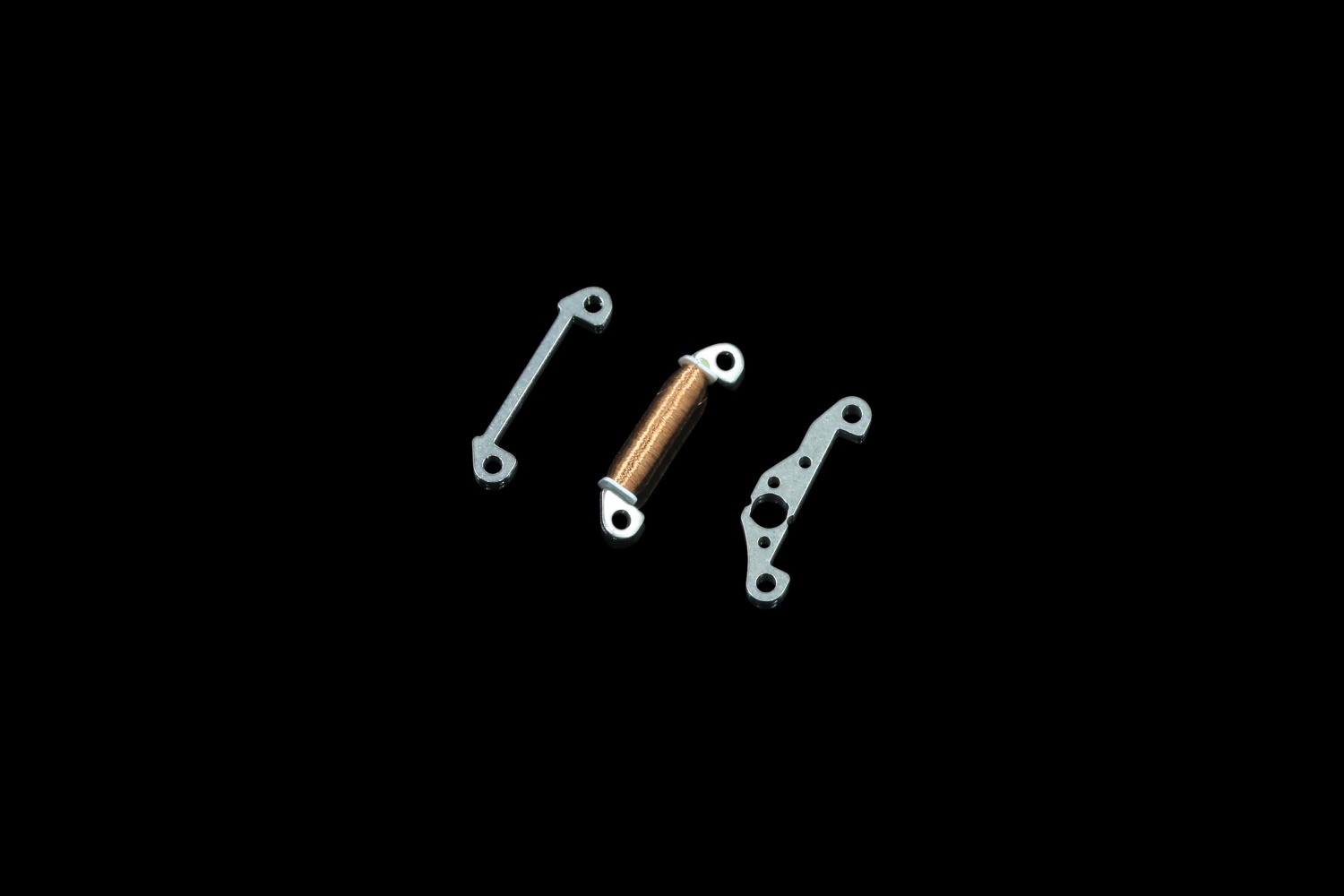

Modern battery-powered watches are hybrid machines. They utilize electronic regulation to drive a traditional mechanical gear train. The stepper motor converts electrical impulses into rotational force, which is then transmitted through the wheel train to turn the hands.
Wear within this precision horologe gear system is a primary cause of failure. Over time, synthetic lubricants evaporate or degrade into a sticky residue. Microscopic debris can also bypass compromised crown gaskets. When dirt infiltrates the gear teeth, it creates irreversible friction. The tiny stepper motor lacks the torque to overcome this resistance, causing the mechanism to stall permanently. At this stage, replacing the entire unit is the most efficient solution.
Acquiring a replacement requires navigating a complex global supply chain. You must choose between sourcing an exact Original Equipment Manufacturer (OEM) replacement or finding a compatible aftermarket equivalent. Each approach carries distinct advantages and technical requirements.
The first step in sourcing is locating the manufacturer stamp and caliber number. This information is typically engraved directly on the metal backplate or printed on the plastic circuit cover. Common manufacturer stamps include ETA, Ronda, Miyota, and Seiko/SII. A typical alphanumeric code looks like "Ronda 715" or "Miyota 2035". You will need a 10x loupe to read these tiny engravings accurately.
Once identified, you must source the part from reputable internet horological suppliers. Avoid unverified marketplaces, as they frequently distribute counterfeit quartz watch movement components. Counterfeits suffer from poor tolerances, weak stepper motors, and rapid failure rates. When browsing verified catalogs, pay close attention to origin designations. You must differentiate between "Swiss Made" (fully assembled in Switzerland) and "Swiss Parts" (components manufactured in Switzerland but assembled in Asia). While dimensionally identical, the Swiss Made variants often feature gold-plated base plates and jeweled bearings for superior longevity.
Manufacturers frequently retire older calibers. When your exact model is obsolete, you must rely on a framework for finding modern equivalents. Horological supply houses publish extensive movement interchangeability charts. These charts cross-reference discontinued models with modern replacements that share identical Ligne sizes, thicknesses, and hand hole dimensions.
However, utilizing an equivalent often requires functional compromises. You might lose a specific complication, such as a day-of-the-week indicator, or you may have to accept a different date wheel font. In some cases, the replacement might lack a battery end-of-life (EOL) indicator present in the original. You must weigh these functional compromises against the necessity of getting the timepiece running again.
Evaluating the economic viability of a swap requires analyzing the relative cost differences between calibers. A standard entry-level Miyota mechanism represents a minimal investment, making it ideal for restoring fashion watches. Conversely, a premium ETA thermocompensated caliber requires a significant financial commitment, justified only when restoring high-end luxury pieces.
You also face a trade-off regarding sourcing methods. Buying a brand-new, factory-sealed unit from a parts supply house guarantees zero wear and a fresh circuit. Alternatively, harvesting a working unit from a used donor watch offers a way to acquire discontinued, rare calibers. Donor harvesting carries the risk of inheriting hidden wear, but it remains the only viable option for restoring certain vintage models.
Movement Replacement Specification Checklist | ||
Specification Category | Measurement Focus | Impact of Mismatch |
|---|---|---|
Ligne Size (Diameter) | Base plate width | Movement will not fit inside the case or spacer ring. |
Overall Thickness | Bottom plate to top of circuit | Case back will not close; hands may hit the crystal. |
Hand Hole Dimensions | Hour, Minute, Second pinions | Original hands will fall off or fail to press onto the posts. |
Pinion Height | Post length above the base | Hands will scrape against the dial or hour markers. |
Dial Feet Position | Location of mounting holes | Dial cannot be securely attached to the new caliber. |
Many buyers express a strong desire to replace a broken, expensive-to-service mechanical mechanism with a low-maintenance, battery-powered alternative. This scenario frequently arises with vintage heirlooms or broken fashion watches. While conceptually appealing, this conversion introduces severe structural challenges that often halt the project entirely.
Watch dials attach to the base plate using small metal posts called dial feet. These feet slide into corresponding holes on the caliber and are secured with tiny screws or cam levers. Dial feet positions are strictly proprietary to specific calibers. A battery-powered mechanism will never align with the dial feet of a mechanical unit. For example, a mechanical ETA 2824 has dial feet at 12 and 42 minutes, while a Ronda 715 has them at 17 and 47 minutes.
To bypass this, modifiers often resort to cutting the dial feet off completely. They then use double-sided adhesive pads, known as dial dots, to stick the dial directly onto the new base plate. This workaround introduces inherent risks to the watch's structural integrity. Adhesives degrade over time, causing the dial to shift. A shifted dial misaligns the date window and applies lateral pressure to the central pinions, eventually stalling the motor.
Mechanical hands rarely fit battery-powered pinions. Mechanical watches generally utilize thicker pinions to handle the higher torque of a mainspring. If you attempt a conversion, you will almost certainly need to purchase a completely new set of hands, fundamentally altering the original aesthetic of the timepiece.
Case fitting presents an even larger hurdle. Mechanical calibers are typically thick and wide. Battery-powered units are inherently compact. Securing a small module inside a large case requires fabricating custom movement spacers or rings. Without a perfectly fitted spacer, the internal components will rattle, snapping the winding stem. Because of these severe discrepancies, mechanical conversions rarely meet strict horological success criteria, consume massive amounts of time, and ultimately degrade the historical value of the timepiece.
Executing the actual replacement process involves navigating numerous technical hurdles. One slip of the tweezers can cause permanent damage to the new circuit board or scratch the delicate dial. Understanding these risks allows you to apply proper mitigation strategies on the workbench.
Factory-new calibers arrive with uncut, extra-long winding stems. You must cut this stem to the exact length required by your specific watch case. The process demands precise measurement. You must thread the original crown onto the new stem, insert it into the case, and measure the gap between the crown and the case tube using digital calipers.
Cutting the stem requires heavy-duty wire cutters, followed by meticulous filing to remove metal burrs. The risks here are significant. Cutting the stem too short ruins the part entirely, forcing you to order a replacement stem. Leaving the stem too long prevents the crown from seating flush against the case tube, completely compromising the watch's water resistance. Applying a small amount of thread locker ensures the crown does not unscrew during normal time-setting operations.
Pressing the hands onto the central pinions is the most delicate phase of the operation. The pinions on a battery-powered unit are incredibly fragile compared to their mechanical counterparts. Applying excessive downward force without supporting the base plate can shatter the synthetic jewels or bend the gear pivots.
Mitigation requires specialized tools. You must use a dedicated hand-setting press to apply even, vertical pressure. Always support the underside of the base plate using a movement holder. After installation, you must manually advance the time to check clearance at the 12 o'clock crossover. The hour, minute, and second hands must stack perfectly parallel without touching each other or the crystal.
Attempting this repair at home requires a mandatory investment in specialized tools. A successful swap demands a case back press, non-magnetic tweezers, hand pullers, a hand-setting tool, digital calipers, a pin vise, and a high-quality magnification loupe. Using makeshift tools like screwdrivers to pry off hands guarantees permanent damage to the dial.
You must compare the total investment of acquiring these tools and the replacement part against the flat rate charged by a professional watchmaker. For a single entry-level watch, the tooling investment often exceeds the professional labor rate. However, if you plan to restore multiple timepieces or wish to develop horological skills, investing in the proper equipment yields long-term dividends.
Replacing a dead caliber is a highly viable and satisfying solution for reviving a non-functioning watch. Success depends entirely on your ability to source an exact manufacturer match or a dimensionally identical substitute. By understanding Ligne sizes, pinion heights, and the limitations of mechanical conversions, you can bypass the common pitfalls that ruin DIY repair attempts.
Take the following actions to begin your restoration project:
Open your watch case using the correct case-back tool to avoid gouging the metal.
Photograph the manufacturer stamp and caliber number located on the base plate under bright magnification.
Measure the internal case diameter and original caliber thickness using digital calipers.
Consult a reputable horological parts supplier's catalog to verify the availability of an exact replacement or a documented equivalent.
Calculate the total required investment for both the replacement unit and the mandatory hand-setting tools before beginning the teardown.
A: Most can be replaced, but success depends entirely on sourcing a unit with matching dimensions. You must find a caliber with the exact same Ligne size, thickness, dial feet positions, and hand hole diameters. If an exact match or documented equivalent is unavailable, replacement becomes practically impossible without destructive modifications.
A: No. The idea of mandatory replacement every few battery cycles is a myth. Quality calibers can last decades if the case remains sealed against moisture and depleted batteries are removed promptly to prevent acid leakage. Replacement is only necessary when electronic failure or severe gear wear occurs.
A: Standard Japanese mechanisms represent a minimal financial investment, making them highly accessible for basic repairs. In contrast, complex Swiss chronographs or thermocompensated calibers require a significantly higher premium. The final investment depends entirely on the complication level, manufacturer origin, and whether the unit is currently in production.
A: While technically possible, it is highly ill-advised. The process involves severe difficulties, including mismatched dial feet, incompatible hand sizes, and the necessity of fabricating custom spacer rings. The conversion degrades the watch's structural integrity, ruins its historical value, and rarely results in a reliable timepiece.
A: A fresh battery cannot overcome internal damage. The primary culprits include battery contact corrosion from previous acid leaks, a shorted integrated circuit board, or a jammed gear train caused by dried lubricants and debris. When these issues occur, a full caliber swap is usually required.
A: You need a specific set of horological tools to avoid damaging the components. The essentials include a proper case opener, non-magnetic tweezers, dial protectors, hand levers, a vertical hand press, a pin vise for holding the stem, digital calipers, and heavy-duty wire cutters for trimming the new stem.
