In metrology and precision engineering, the accuracy of your output is strictly bounded by the physical tolerances of your internal components. A single micron of deviation can completely compromise an entire measurement system. You cannot achieve reliable readings without flawless internal mechanics.
Standard power-transmission gears introduce unacceptable levels of backlash, friction, and kinematic error when used in measuring devices. Engineers quickly discover standard off-the-shelf components ruin precise calibration loops. These traditional parts simply lack the refined tooth profiles required for continuous, frictionless motion.
Selecting the right Measure instrument gear—and the right manufacturing partner—requires moving beyond basic dimensions. You must rigorously evaluate thermal stability, micro-pitch accuracy, and strict standard compliance matching ISO or AGMA guidelines. Precision demands intentional engineering from the ground up to ensure long-term laboratory success.

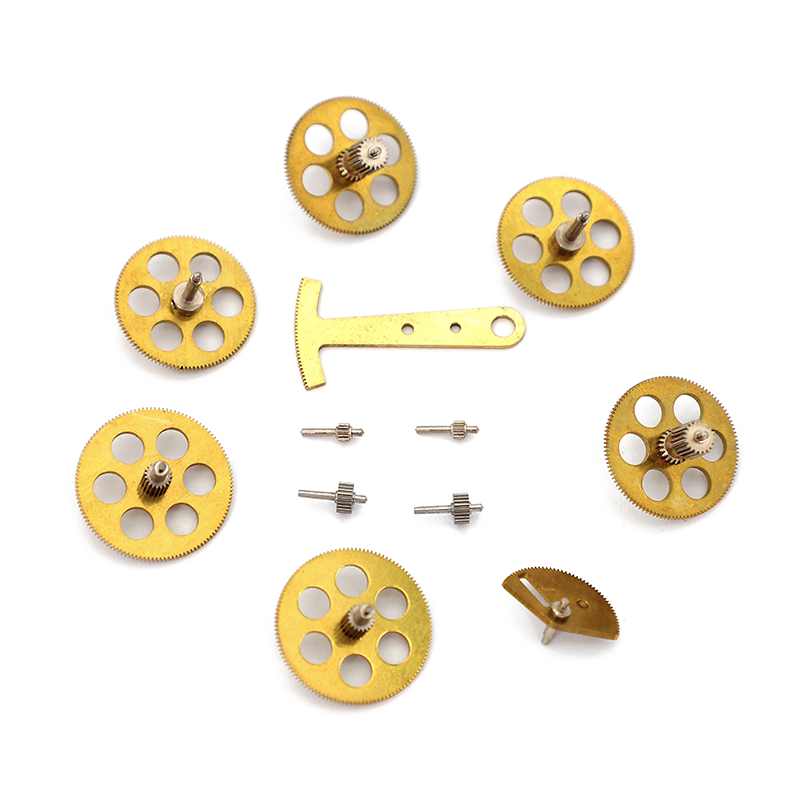

Precision tools live and die by their internal consistency. When you build devices like dial indicators, coordinate measuring machine (CMM) probes, or optical encoders, kinetic perfection is mandatory. The internal gear trains do much more than transfer motion. They translate physical displacement into readable data.
How do minor gear runout or profile errors cascade into severe tolerance stacking? A microscopic error at the gear tooth amplifies significantly by the time it reaches the instrument's measurement tip. Consider a standard dial indicator. A tiny variation in the tooth-to-tooth spacing of the pinion creates a nonlinear response. You might measure a component perfectly at one position, but rotation introduces a distinct mechanical error. This ruins repeatability.
Engineers must understand the stark difference separating measurement gears from power transmission gears. Automotive or industrial gears focus on high torque transfer, load-bearing capacity, and fatigue resistance. Measurement gears serve an entirely different master. They require smooth, continuous motion. They need near-zero friction. Torque transfer remains negligible. Instead, the design prioritizes absolute kinematic accuracy. Any hesitation, binding, or microscopic stutter during rotation directly invalidates the resulting measurement.
Using substandard gears guarantees rapid calibration drift. Instruments lose their zero-reference much faster. This increases end-user maintenance costs drastically. In strict sectors like aerospace machining or medical device manufacturing, operators cannot tolerate drifting tools. Frequent recalibrations drain productivity. Worse, if a drifting instrument passes an out-of-spec medical implant, the resulting liability damages brand credibility permanently. Investing in proper metrology-grade components upfront eliminates these hidden systemic risks.
You cannot specify precision components using generic blueprints. Designers must evaluate highly specific metrology standards, materials, and mechanical architectures to guarantee optimal performance.
Precision begins with an objective grading system. American Gear Manufacturers Association (AGMA) or equivalent International Organization for Standardization (ISO) metrics define the minimum baseline for any measuring tool. For basic power transmission, AGMA Class 6 or 8 often suffices. Metrology demands AGMA Class 12 or higher. This strict classification dictates incredibly tight bounds on radial runout, profile accuracy, and pitch deviation.
When inspecting these components, engineers focus heavily on composite errors rather than just basic dimensions. You must evaluate two critical acceptance criteria:
| Feature Focus | Power Transmission Gear | Metrology-Grade Gear |
|---|---|---|
| Primary Objective | Torque transfer and load capacity | Kinematic accuracy and data fidelity |
| Typical Standard | AGMA Class 6 - 8 | AGMA Class 12+ (or ISO equivalent) |
| Surface Finish Focus | Fatigue resistance | Friction reduction and smooth rolling |
| Critical Error Metric | Root stress and bending limits | Tooth-to-Tooth Composite Error (TTCE) |
Even a perfectly machined gear will fail if its material reacts poorly to the surrounding environment. Temperature fluctuations cause thermal expansion. Factory floors rarely maintain the perfect 68°F (20°C) found in metrology labs. Choosing materials requiring predictable dimensional stability across varying temperatures is crucial. Specialized brass, phosphor bronze, and 300/400 series stainless steels dominate this space. They offer low thermal expansion coefficients, keeping calibration drift minimized.
Corrosion resistance adds another layer of complexity. Factory environments expose tools to cutting fluids, high humidity, and airborne contaminants. Instruments must resist degradation. Passivation becomes a mandatory process for stainless steel components. This chemical treatment removes free iron from the surface, creating a protective oxide layer. It ensures gears do not oxidize or pit when exposed to harsh manufacturing environments over decades of use.
Backlash represents the enemy of precision. If a gear train exhibits play upon reversing direction, the instrument cannot provide repeatable measurements. You have two primary approaches for managing this.
First, engineers employ anti-backlash gear designs. The most common is the spring-loaded scissor gear. This splits the gear into two halves loaded against each other via internal springs. The halves expand to fill the gap of the mating gear completely. It eliminates backlash effectively.
Second, designers use strict center-distance tolerancing. This relies on machining housings and gears perfectly so they mesh with minimal clearance. Both approaches carry strict trade-offs. Anti-backlash gears eliminate play completely but introduce constant spring tension. This adds unwanted friction and viscous drag. Strict center-distance designs reduce friction but require exponentially higher machining costs for the instrument housing. You must balance these trade-offs based on the specific rotational force your instrument probe generates.
Machining an AGMA 12 gear is difficult. Proving you machined an AGMA 12 gear is often harder. Your vendor must operate as a metrology expert first and a machine shop second.
A credible Measure instrument gear manufacturer must possess internal inspection capabilities exceeding the tolerances of the components they produce. You cannot measure a micron-level deviation using basic hand tools. Look for climate-controlled inspection rooms. Verify they utilize dedicated analytical gear checkers, such as Wenzel or Klingelnberg CMMs. These machines physically trace the involute profile and output detailed charts proving TTCE and TCE compliance.
Traceability and documentation separate top-tier vendors from unreliable suppliers. Insist on strict paperwork protocols. You need comprehensive First Article Inspection (FAI) reports covering every critical dimension. Material certifications must prove the metal's exact alloy composition and heat treatment history. Full batch traceability ensures you can isolate and recall specific production runs if a field failure ever occurs.
Evaluate their custom engineering support closely. The best manufacturers do not just cut metal to print. They consult. They suggest tooth profile modifications optimizing kinetic roll. They recommend custom pitch variations solving unique spatial constraints inside your instrument. They understand specialized surface treatments reducing dry-running friction.
Watch out for immediate red flags during the vetting process. Vendors hesitating to share raw inspection data usually hide poor process control. A lack of ISO 9001 or AS9100 certifications indicates immature quality management systems. Furthermore, if they cannot provide distinct references within the metrology, medical, or optical industries, they likely underestimate the stringent requirements of measurement instrumentation.
Moving from a digital CAD model to a fully assembled physical instrument reveals harsh mechanical realities. Engineers frequently underestimate the integration challenges waiting on the assembly floor.
The prototyping trap ruins many product launches. During proof-of-concept stages, design teams often purchase commercial off-the-shelf (COTS) precision gears. These single units might work beautifully for a prototype. However, relying on them for scaled production invites disaster. COTS suppliers rarely guarantee batch-to-batch consistency. A gear bought in March might feature slightly different micro-geometry than one bought in November. Scaling up requires locked-down, custom manufacturing processes ensuring every batch behaves identically.
Tolerance stacking during assembly destroys perfect components. You can source the most accurate gear imaginable, but it will still fail if integrated poorly. Engineers must account for shafts, bearings, and instrument housings. If the gear's bore-to-shaft fitment introduces even slight eccentricity, the gear will rotate off-center. This immediately induces artificial runout. Bearings must offer ultra-low radial play. Housing bores must align perfectly parallel. Every mating component must match the gear's strict tolerance grade to preserve measurement fidelity.
Finally, engineers face a difficult decision framework regarding instrument lubrication. Should the gear train run wet or dry? Power transmission gears require heavy oil or grease. Measurement gears operate under different physics. Many precision measurement gears must run completely dry. Lubricants introduce viscous drag. This drag changes depending on ambient temperature, making the instrument feel sluggish in cold environments. Furthermore, grease attracts microscopic dust and shop debris, eventually turning into a grinding paste. Running dry avoids these issues but heavily influences your initial material choice. You must pair dissimilar metals—like a brass gear against a steel pinion—to prevent galling and premature wear in unlubricated environments.
Procuring metrology-grade components requires a structured, data-driven methodology. Do not rush the purchasing process based on preliminary pricing estimates alone.
Start by defining rigid success criteria. Establish your absolute maximum acceptable error margins before engaging suppliers. Know exactly how many microns of runout your overall system can tolerate. Determine the required lifespan in terms of operational cycles. Are you building a lab-grade device used twice a day, or an automated factory-floor probe actuating ten thousand times a shift? Set clear target unit costs based on these functional demands before ever requesting a formal quote.
Once you shortlist vendors, initiate a rigorous sampling process. Never rely solely on paper specifications or digital inspection reports. Request test batches. You must physically validate the kinetic smoothness and runout by assembling these sample gears into your actual instrument housing. Spin the mechanism. Measure the hysteresis. A gear checking perfectly on a CMM might still bind in your housing due to unforeseen thermal or spatial interactions. Real-world physical testing provides the only true validation.
Ensure component lifecycle planning aligns directly with your intended maintenance schedules. Predictable, gradual wear is always safer than sudden, catastrophic failure. Ask your manufacturing partner for wear-rate estimations based on your chosen materials. You want gears slowly drifting out of spec over a known five-year horizon, allowing proactive recalibration. Sudden tooth shearing or rapid galling ruins user trust instantly.
Choosing the right internal components ultimately safeguards your instrument's baseline accuracy, ensures ongoing regulatory compliance, and protects your long-term market reputation.
A: Rarely. While surface finishes can be improved, the fundamental tooth-to-tooth accuracy and concentricity required for metrology must be machined into the gear from the first cut. Modifying standard gears usually costs more and yields inconsistent results.
A: It depends on the operating environment. Phosphor bronze and 300/400 series stainless steels are industry standards due to their favorable wear characteristics, low magnetic permeability, and corrosion resistance.
A: Through double-flank roll testing to measure composite errors, and analytical gear inspection using specialized CMMs to verify involute profile, lead, and pitch variations against the master blueprint.
