How can you tell if a module performs reliably under real weaving conditions?Testing an M5 jacquard module requires more than a simple power check.In this article, you will learn how to inspect connectors, hooks, pulleys, bearings, response stability, and machine-level performance.
A complete M5 jacquard module performance test should combine several checks.
Testing only electrical activation can miss mechanical problems. Testing only moving parts can also miss connector faults.
The best method follows the complete operating sequence.
Start by identifying the exact module configuration.
Check its model number, connector, pulley, bearing, hook, and installation direction. M5 modules can use different structures and component arrangements.
Supplier listings show M5 modules with fast connectors and bearing-equipped pulley configurations. Other M5 products can use different pulley structures.
This means one testing standard cannot cover every model.
Before testing, record:
Module model
Machine model
Connector type
Bearing configuration
Pulley type
Hook arrangement
Installation position
XINYANG also offers several M5 structures and related components. Its M5-3 model uses a bearing and an M6-style structure.

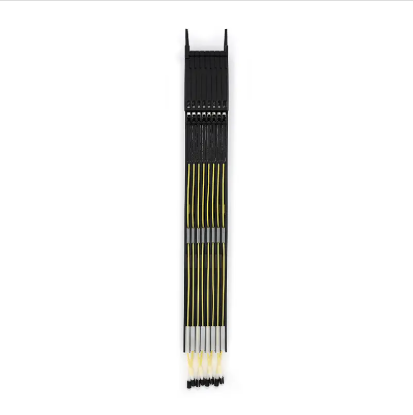

Buyers can review the XINYANG M5-3 Electronic Jacquard Module with Bearing before defining a matching test procedure.
Inspect the module before applying any control signal.
Look closely at the housing and side boards. Check hooks, pulleys, connectors, bolts, and moving interfaces.
Watch for:
Cracked plastic parts
Bent hooks
Loose connectors
Damaged terminals
Pulley wear
Bearing looseness
Textile fibers
Oil contamination
Incorrect assembly
Moving components should sit in their intended positions.
Do not continue if obvious structural damage exists.
Testing a damaged assembly can hide the original failure source.
Next, inspect the connector carefully.
Bent terminals or loose contacts can create intermittent faults. Oxidation may also increase contact resistance.
Connect the module using the correct test system.
Apply only the electrical conditions specified for that module. Do not assume every M5 model uses identical electrical values.
Activate the module repeatedly.
Its response should remain stable during each cycle. Light cable movement should not interrupt operation.
An M5 jacquard module connector test should therefore check both contact and repeated response.
Hook movement is central to module performance.
Activate every selection position separately.
Each hook should engage correctly during selection. It should also release without sticking afterward.
Look for:
Delayed response
Partial movement
Hook sticking
Slow return
Unequal travel
Abnormal clearance
Repeat the same action several times.
A module may work correctly once but fail intermittently later. Repeated testing makes these faults easier to identify.
Mechanical resistance can affect selection performance.
Move the pulley through its normal operating range. It should move smoothly without unusual resistance.
Listen for grinding or clicking sounds.
Bearing-equipped modules need additional checks.
Inspect bearing rotation and side play. Rough movement can indicate wear or contamination.
XINYANG supplies M5 pulley components using integrated bearings. Its catalogue also contains non-bearing M5 pulley designs.
The M5 Pulley with Bearing product page provides one example of a bearing-equipped M5 component.
Bench testing cannot confirm every operating condition.
Install the module on its intended jacquard system.
Start under controlled operating conditions when possible. Then move toward normal production speed.
Monitor:
Selection accuracy
Hook synchronization
Mechanical vibration
Pulley movement
Connector stability
Pattern consistency
Abnormal noise
Use a repeatable weaving pattern during testing.
This makes it easier to compare results between modules.
Do not rely only on visual judgment.
Create a test record for every module or inspected batch.
Record which position failed and how it failed.
Group defects into categories such as electrical, mechanical, connector, hook, pulley, or bearing faults.
For bulk purchasing, test several samples.
One good sample cannot prove batch consistency.
Tip： Create one approved reference module and compare future samples against the same baseline.
Preparation improves the accuracy of module testing.
Confirm what you are actually testing.
An M5 label alone does not describe every structural detail.
Check the connector, pulley, hook, bearing, and module architecture first.
XINYANG's product catalogue separates M5 modules from dedicated M4, M5, and M6 module parts.
The XINYANG complete product catalogue can help buyers identify the relevant product family.
Check both fixed and moving components.
A cracked side board may affect alignment.
A bent hook may create delayed movement.
Loose pulley parts may create unstable mechanical travel.
These problems should be identified before electrical testing begins.
Textile environments produce dust and fibers.
These materials can collect around moving parts.
Remove visible contamination before performance testing.
Otherwise, debris can increase friction and produce misleading results.
Tip： Testing a contaminated module may confuse maintenance problems with component defects.
Electrical stability should be tested independently from mechanical movement.
The connector should lock securely.
Inspect terminals for deformation or contamination.
A loose terminal may operate normally at rest. It may fail during vibration.
Gently check cable stability while monitoring response.
Do not pull or damage the wiring.
Activate the module using suitable test equipment.
Every commanded position should respond consistently.
Compare suspicious modules against a known-good unit.
This comparison can help identify weak or delayed activation.
Do not publish universal resistance or current thresholds without verified technical data.
Those limits can differ by configuration.
Repeat activation many times.
Intermittent faults may not appear during one cycle.
Watch for occasional missed movements or delayed responses.
If the problem disappears after changing the connector, inspect the connection first.
This approach improves M5 jacquard module fault diagnosis.
Mechanical testing should isolate each moving system.
An M5 jacquard module hook test checks selection and release.
Activate each hook position repeatedly.
Look for consistent travel.
The hook should not bind against surrounding parts.
Inspect bent or worn surfaces carefully.
Uneven hook movement can eventually affect pattern selection.
Move the pulley through its working range.
Smooth movement is the main goal.
Look for sudden resistance.
Listen for unusual mechanical noise.
Inspect surfaces where repeated contact occurs.
Excess friction can make a healthy electromagnetic system appear weak.
For an M5 jacquard module with bearing, inspect the bearing separately.
It should rotate smoothly.
Excessive radial movement may indicate wear.
Grinding usually deserves further inspection.
Do not assume an electrical fault when the real problem is mechanical resistance.
XINYANG's Jacquard Module Parts range includes M5 hooks, magnets, pulleys, and bearing-related components.
Tip： Test electrical response and pulley resistance separately before replacing a complete module.
Machine testing confirms whether bench results translate into real weaving.
Install the module correctly.
Verify connectors and hooks before starting.
Begin under controlled conditions where practical.
Observe basic selection behavior before increasing production load.
Use a repeatable jacquard pattern.
This creates consistent test conditions.
Watch for missed hooks and delayed selection.
Compare the result against a known-good module.
Pattern errors occurring at the same position can help narrow the fault location.
Gradually move toward normal production conditions.
Some faults appear only after cycle frequency increases.
Watch for delayed hooks or unstable returns.
Also monitor vibration and unusual noise.
Do not assume every M5 module supports identical operating speeds.
Supplier listings show multiple M5 configurations for different jacquard applications.
The woven result provides practical performance evidence.
Look for repeated pattern errors.
Check whether defects remain at the same selection position.
Intermittent defects may suggest unstable response.
Consistent defects may indicate a specific hook or mechanical problem.
Tip： Use the same test pattern when comparing modules from different production batches.
A short test can confirm basic function.
It cannot always confirm long-term stability.
Operate the module through repeated cycles.
Monitor hook response over time.
Watch for sticking or delayed release.
The response should remain consistent during the test period.
Check the module immediately after startup.
Then test it again after continuous operation.
Some problems appear only after components warm.
Electrical connections can also become unstable over time.
Record both cold and warm behavior.
Bulk buyers should test multiple units.
Compare mechanical movement and selection response.
Check connector fit across samples.
Inspect pulley and bearing consistency.
Large variation between samples can create maintenance problems later.
Extended testing is useful for demanding applications.
Run the module under representative operating conditions.
Record any response changes.
Inspect mechanical parts again after testing.
The actual test duration should follow verified requirements.
Do not create arbitrary life-cycle claims without supporting technical data.
Good jacquard troubleshooting separates symptoms from root causes.
Start with the simplest possible causes.
Check the connector and control signal.
Then inspect installation.
Possible causes include:
Loose connector
Damaged terminal
Incorrect signal
Internal electrical fault
Incorrect installation
Avoid replacing the full module before checking these points.
Slow movement can have several causes.
Look for hook deformation first.
Then inspect pulley friction and bearing movement.
Remove visible contamination.
If the mechanical system moves freely, investigate activation response next.
This sequence makes fault diagnosis more efficient.
This symptom often needs dynamic testing.
Check whether the hook returns fast enough.
Inspect pulley resistance.
Verify connector stability during vibration.
Also confirm the module is intended for the actual application.
A low-speed bench test cannot prove high-speed production stability.
Compare initial and later behavior.
Check connectors again.
Inspect bearings and pulleys.
Look for accumulated fibers.
Temperature-related changes can also expose weak contacts.
Separate mechanical wear from electrical instability before planning M5 module repair.
Purchasing teams should ask for practical evidence.
Request records covering hook and pulley condition.
Bearing-equipped models should include bearing inspection.
Visual defects should also be documented.
These records make incoming inspection easier.
Ask whether each selection position was tested.
Confirm whether testing used repeated cycles.
For sampling inspection, ask how samples were selected.
This information helps buyers understand test coverage.
Ask what equipment was used during testing.
Confirm whether conditions match your intended application.
Terms such as “high-speed” need clear context.
The module should be tested under relevant operating conditions.
Define acceptance requirements before ordering.
Keep approved samples when possible.
Record batch information.
Agree on how defective products will be handled.
These practices reduce disputes during repeat orders.
Yantai Xinyang Electronics lists electronic jacquard modules and module parts among its main products. The company also reports experience in precision stamping, injection molding, soft magnetic materials, and coil processing.
More company and product information is available through the YANTAI XINYANG official website.
Tip： B2B buyers should define acceptance criteria before mass production begins.
Test Area | What to Check | Typical Warning Sign |
|---|---|---|
Visual inspection | Housing, hooks, side boards | Cracks or deformation |
Connector test | Fit and contact stability | Intermittent response |
Hook test | Engagement and release | Sticking or delayed movement |
Pulley test | Smooth movement | Resistance or abnormal noise |
Bearing test | Rotation and play | Roughness or looseness |
Repeated cycling | Response consistency | Missed selections |
Machine test | Selection synchronization | Pattern errors |
Speed test | Stability under target conditions | Failure at higher speed |
Long-run test | Operating consistency | Gradual instability |
Batch test | Unit-to-unit consistency | Large performance variation |
This checklist can support incoming inspection and supplier evaluation.
However, it should not replace the module's verified technical specifications.
Testing an M5 jacquard module should cover connectors, hooks, pulleys, bearings, repeatability, and machine-level performance. Reliable testing helps identify faults before they affect weaving quality.
Yantai Xinyang Electronics provides jacquard modules and related precision parts. Its product range supports stable replacement, easier maintenance, and consistent performance for textile machinery applications.
A: It checks M5 jacquard module connectors, hooks, pulleys, bearings, and repeated operating stability.
A: Test the M5 jacquard module through visual inspection, electrical checks, hook movement, and machine operation.
A: Testing an M5 jacquard module helps identify faults, unstable response, and batch inconsistencies.
A: Cost depends on test equipment, sample quantity, machine time, and required performance checks.
A: Machine testing verifies real weaving performance, while bench testing isolates electrical and mechanical faults.
A: An M5 jacquard module may fail because of friction, delayed hook return, connector faults, or unsuitable configuration.
