Precision in mechanical engineering and manufacturing is completely non-negotiable. Tiny dimensional deviations can easily ruin an entire production run. Modern manufacturing simply demands absolute accuracy to succeed in a highly competitive market. Unfortunately, inaccurate measurements often lead to costly scrapped parts, compliance failures, and severely compromised safety standards. Individual mechanical components must fit together perfectly every single time. For beginners—whether you are a newly hired quality assurance engineer or an eager procurement specialist—navigating the expansive landscape of precision tools feels overwhelming.
Understanding these complex mechanics is critical for making sound purchasing decisions. Specifically, you need to grasp how gear-driven tools and instruments designed for gear metrology operate on a daily basis. This guide strips away confusing marketing fluff to objectively evaluate these essential tools. We explore the types, functions, and industrial applications of a reliable Measure instrument gear. By reading further, you will gain a clear, actionable framework for vendor evaluation and successful tool selection.
Mechanisms Matter: Gear-driven measuring instruments (like dial indicators) offer high-reliability tactile feedback, often preferred in environments where digital tools fail.
Application Dictates Tool: Selecting between calipers, micrometers, and dedicated gear profile testers depends strictly on required tolerances and environmental constraints.
Vendor Vetting: Sourcing from a reputable measure instrument gear manufacturer reduces supply chain risk and ensures traceable calibration standards.

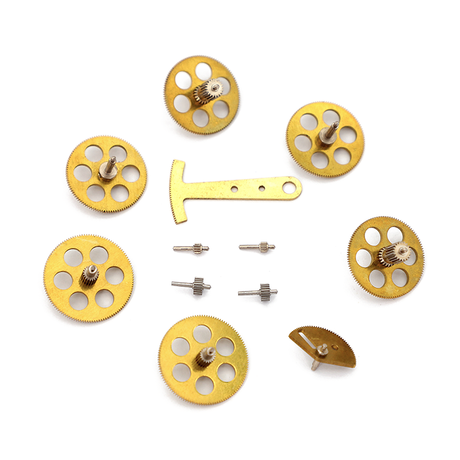

This category carries a fascinating dual meaning within the metrology field. First, it refers to precision instruments utilizing internal gear mechanisms. A classic example is the traditional rack and pinion system found inside dial gauges. Second, it describes instruments designed specifically to measure external gear parameters. These critical parameters include pitch, runout, and complex involute profiles.
Why should you choose gear-driven analog tools? They provide exceptional immunity to electrical interference. They never suffer from sudden battery failures on a busy shop floor. Machine operators genuinely appreciate the immediate visual indication of rate-of-change. Watching a physical needle sweep across a dial gives highly intuitive feedback about spindle travel. Digital screens simply flash numbers. Rapidly changing digits can sometimes confuse users during quick manual checks.
However, we must openly acknowledge their structural limitations. Analog tools are highly susceptible to sudden physical shock. Dropping a delicate dial indicator can cause severe internal gear backlash. This invisible damage instantly ruins measurement accuracy. Furthermore, these mechanical devices require strict environmental controls. Extreme temperature swings and high humidity can warp delicate internal components over time. You must keep them meticulously clean and properly lubricated.
Understanding the various solution categories helps you select the right tool for your specific job. Each type serves a distinct, highly specialized function inside the metrology lab.
These versatile tools utilize precision internal gears. They effectively amplify minor contact probe movements into highly readable dial metrics. You will find them absolutely essential for checking runout on cylindrical parts. They also excel at verifying alignment and measuring relative distances in complex machining setups. Machinists frequently mount them on heavy magnetic bases to continuously monitor lathe or mill operations.
This category includes dedicated tools built exclusively for inspecting complex physical geometries. Common examples include gear tooth vernier calipers and micrometers equipped with specialized anvil heads. Roll testers also fall into this distinct group. You use these instruments for closely inspecting involute profiles. They effectively measure chordal thickness. Using them ensures strict metric gear technology compliance across your entire production run.
CMMs represent the absolute pinnacle of automated, highly accurate 3D measurement systems. They utilize specialized software suites to mathematically map complex tooth flanks. These massive machines are best for high-volume, high-precision environments. They automatically generate verifiable, highly detailed measurement logs for quality audits.
Here is a quick functional breakdown comparing these primary metrology tools:
Instrument Category | Primary Function | Best Industrial Use Case | Relative Investment Level |
|---|---|---|---|
Dial Indicators | Amplifies microscopic probe movement | Runout and spindle alignment checks | Low to Medium |
Specialized Calipers | Measures chordal tooth thickness | Involute profile physical inspection | Medium |
Automated CMMs | Automated 3D coordinate mapping | High-volume precision compliance audits | High |
Technical features matter, but industrial outcomes matter much more. Precision measurement directly drives worker safety and operational efficiency across multiple global sectors.
In automotive and aerospace manufacturing, production tolerances remain incredibly tight. Engineers must ensure transmission gears and internal engine components meet strict dimensional thresholds. Even a microscopic deviation can cause catastrophic mechanical failure on the highway or in the sky. Aerospace gearboxes require absolutely perfect pitch and runout measurements. This perfection prevents deadly mid-air malfunctions and ensures smooth power delivery.
Heavy machinery and robotics heavily rely on smooth, uninterrupted power transmission. Technicians carefully verify backlash and pitch in metric gear assemblies. Without precise measurements, industrial robots suffer from jerky, inaccurate movements. Heavy construction excavators lose massive power efficiency if their planetary gears grind prematurely. Regular dimensional inspections keep these massive operational systems running smoothly.
Quality control (QC) and compliance departments depend strictly on accurate metrology. They must generate traceable measurement data continuously throughout the year. Achieving ISO 9001 certification demands rigorous internal quality audits. Metrology labs use specialized instruments to build these detailed, undeniable audit trails. Without verifiable data, companies simply cannot prove their manufacturing consistency to prospective clients.
Choosing the right tool minimizes implementation risks across your facility. You must follow a structured, logical decision framework to avoid costly purchasing mistakes.
First, rigorously analyze your tolerance and accuracy requirements. Industry standards dictate the famous 10:1 rule of thumb. Your instrument’s resolution must be ten times finer than the blueprint’s stated tolerance. If a machined part has a tolerance of 0.1 millimeters, your gauge must read reliably down to 0.01 millimeters.
Next, carefully assess environmental factors present on your shop floor. Harsh conditions often degrade exposed mechanical mechanisms. You must actively consider the following environmental hazards:
Heavy metallic dust and airborne particulate matter
Synthetic coolant splashing directly from CNC machines
Extreme ambient temperature fluctuations near furnaces
Constant vibration radiating from heavy stamping presses
Operator skill level also dictates your purchasing choices. Analog gear instruments require proper "feel" from the operator. Users must read the physical dial directly from the front to avoid dangerous parallax errors. You should assess whether digital counterparts might reduce beginner operator error. Digital screens eliminate subjective human interpretations of a swinging needle, making training much easier for junior staff.
Finally, plan for ongoing calibration and preventive maintenance. National physical laboratory standards require regular equipment verification. You must factor in the lifecycle effort of annual or bi-annual calibration. Avoid buying measuring tools built entirely from cheap, easily worn plastics. They drift out of calibration rapidly, causing completely unseen production errors.
Trust and scalability define a successful, long-term vendor relationship. You simply cannot afford to buy precision tools from unverified, anonymous sources. Partnering with a reputable Measure instrument gear manufacturer ensures long-term operational reliability.
Traceability and formal certifications stand as the absolute baseline. A credible manufacturer must provide traceable calibration certificates right out of the box. Look for strict compliance with NIST, NPL, or equivalent global metrology standards. If a vendor cannot supply this vital documentation, you should walk away immediately.
Examine the material quality and underlying engineering details. High-quality metrology tools feature hardened stainless steel components. Premium dial indicators use synthetic jeweled bearings to drastically reduce internal friction. The manufacturer should provide incredibly clear documentation regarding their own gear pitch accuracy.
Post-sale support separates great industry vendors from mediocre ones. Evaluate the manufacturer’s promised turnaround time for broken tool repairs. Check the immediate availability of standard replacement parts. Ensure you have direct technical support access whenever complex measurement problems arise on your floor.
Watch out for major purchasing red flags. Avoid vendors refusing to publish their exact tolerance specifications. Opaque warranty terms clearly signal a lack of confidence in overall product durability. Finally, completely steer clear of untraceable white-labeled products. They often fail to maintain accuracy after just a few short months of heavy industrial use.
Selecting the correct metrology instruments demands careful, objective consideration. You must skillfully balance upfront procurement costs against strict accuracy requirements. Environmental durability plays a massive role in determining tool longevity. Operator proficiency ultimately determines whether you should choose traditional analog or modern digital variations. By understanding these core dynamics, you can confidently equip your shop floor for long-term manufacturing success.
Take the following action-oriented next steps to optimize your facility's metrology processes:
Audit your current measurement requirements across all active production lines.
Define your critical component tolerances using the standard 10:1 rule of thumb.
Request detailed technical specification sheets from your shortlisted manufacturers.
Ask for physical calibration samples to verify their traceability standards before signing purchase orders.
A: The primary difference lies directly in their internal mechanisms. A gear-driven indicator uses a mechanical rack and pinion system to move a physical dial. A digital indicator relies entirely on a linear encoder and displays numbers electronically. Digital versions offer convenient data-logging capabilities, but mechanical versions often boast better environmental resilience against machine coolant and random electronic interference.
A: Calibration frequency varies heavily based on usage intensity and environmental harshness. However, a strict annual schedule serves as the standard industry baseline. Tools subjected to dirty shop floors or multiple daily shifts may require bi-annual checks. You should always align your exact calibration schedule with your internal quality control protocols and ISO compliance requirements.
A: Focus intensely on documented reliability. You should seek out ISO certifications and NIST or NPL calibration traceability. A truly trustworthy manufacturer provides robust warranties and highly accessible post-sale support. They should also possess a proven, verifiable history of producing highly durable metrology equipment tailored specifically for demanding industrial environments.
A: No, they are certainly not obsolete. Analog tools remain absolutely critical for specific industrial applications. They are invaluable where digital screens become completely unreadable due to heavy glare or thick oil. Furthermore, analog instruments continue functioning perfectly in harsh shop environments that quickly destroy delicate electronic tools or rapidly drain their batteries.
