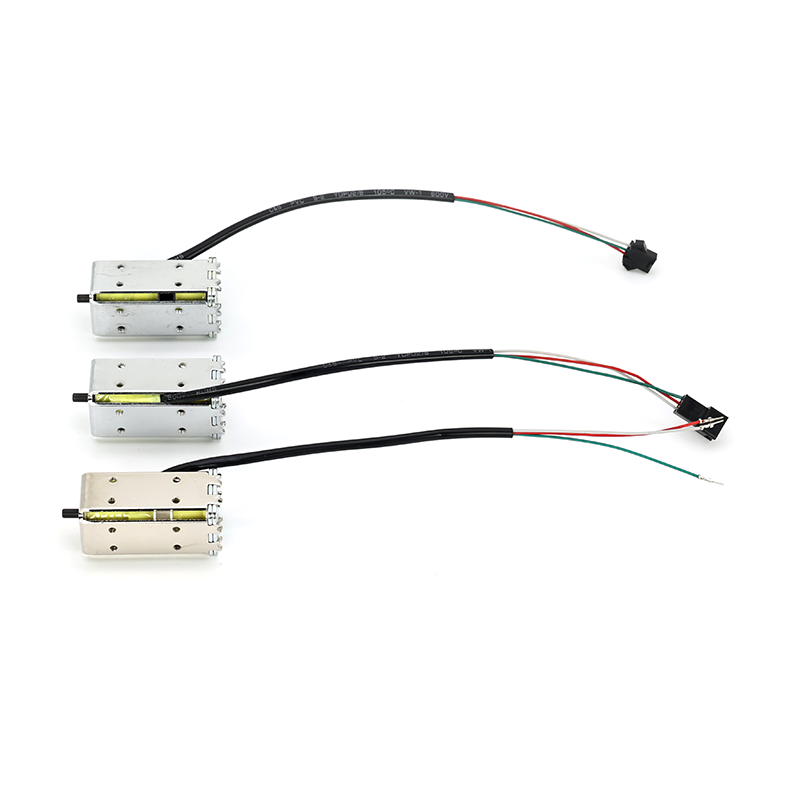

The 0951N Self Hold Color Changed Solenoid is a specialized electronic component for computerized flat knitting machines, developed by YANTAI XINYANG to regulate yarn color switching in multi-color knitting processes.
| Quantity: | |
|---|---|
Its self-holding function (activated by a 0.5s pulse signal) eliminates the need for continuous power supply, making it energy-efficient while ensuring precise, delay-free color changes. This solenoid is widely used in textile factories producing multi-color knitted products (e.g., striped sweaters, patterned scarves, children’s clothing) and is compatible with 90% of global flat knitting machine brands (including Stoll CMS, Toyota JUKI).
Specification | Details |
Voltage | DC 24V (industrial standard, compatible with 22V-26V voltage fluctuation) |
Max Working Current | 0.8A (stable current ≤0.6A during holding state) |
Holding Force | 50N (tested at 25℃ room temperature, no more than 5% force loss at 80℃) |
Response Time | ≤0.1s (tested under 24V DC, no delay in 1,200 rpm high-speed knitting) |
Protection Grade | IP54 (dustproof, splash-proof; passes 48-hour water spray test per IEC 60529) |
Certification | CE (EN 61326-1), ROHS (EU 2011/65/EU, free of 10 restricted substances) |
Energy Saving: Self-holding design cuts power consumption by 40% compared to non-self-hold solenoids—calculated at 8-hour daily operation, it saves approximately 3,000 yuan in electricity costs per machine annually.
Rapid Response: 0.1s switching speed prevents color overlapping (e.g., red-yellow color bleeding) in high-speed knitting (up to 1,200 rpm), ensuring clear color boundaries in striped fabrics.
Durable Housing: Stainless steel (304 grade) casing resists corrosion from textile oils (e.g., knitting machine lubricants) and humidity, extending service life to 4–6 years (twice the lifespan of aluminum-cased solenoids).
Scenario Solution: For garment factories producing fast-fashion multi-color knitwear (e.g., Zara OEM manufacturers), the 0951N solenoid solves the problem of slow color transitions that cause fabric waste. A Guangdong-based OEM factory with 30 knitting machines reported that after installation, production cycles accelerated by 30% (from 5 days to 3.5 days per batch of 10,000 sweaters) while reducing energy bills by 28% monthly.
Q1: Does this solenoid require a specific controller?
A1: It is compatible with most standard flat knitting machine controllers (e.g., Shima Seiki AP-C3, Stoll MTC). We provide a detailed compatibility list (covering 20+ controller models) upon request, and offer free adapter cables for non-standard interfaces.
Q2: What if the solenoid fails to hold position?
A2: First check the voltage supply (ensure 22–26V DC) and clean the solenoid core with anhydrous ethanol to remove oil stains. If normal, our technical team offers remote debugging (via TeamViewer) or free replacement within the 1-year warranty period.
Q3: Can it be used in low-temperature workshops (e.g., -5℃)?
A3: Yes, it maintains stable holding force at -5℃, but we recommend installing a heat insulation sleeve (provided as an optional accessory) for workshops below -10℃ to avoid coil performance degradation.
Bulk Discounts: 5% off for orders over 100 units, 10% off for 300+ units, and 15% off for 500+ units—discounts apply to mixed orders with other solenoid models.
Technical Training: On-site (for orders over 200 units) or online (via Zoom) training for factory operators, covering installation, daily maintenance, and troubleshooting (training materials provided in English/Chinese).
Fast Delivery: 3–5 working days for samples (via DHL/FedEx); 7–10 days for bulk orders (air freight) or 20–25 days (sea freight to major ports like Rotterdam, Los Angeles).
