Solenoid For Flat Knitting Machine: Function, Structure, And Application

In modern textile manufacturing, precision dictates profitability. Operators rely on advanced electromechanical components to execute digital patterns flawlessly. The Solenoid For Flat Knitting Machine acts as this critical bridge. It connects sophisticated design software directly to physical needle movements. When these actuators fail or lag, production lines suffer immediately. Latency causes dropped stitches and ruins complex jacquard patterns. These errors lead to costly machine downtime and material waste. Factory managers frequently struggle to maintain output when mechanical components degrade. We wrote this comprehensive guide to solve these exact challenges. You will learn the technical specifications defining highly reliable actuators. We break down the structural mechanics and vital procurement criteria. Armed with this knowledge, you can select durable, high-performance parts. Upgrading your internal components ensures smoother continuous production runs. You will ultimately maintain superior fabric quality across every batch.

Key Takeaways

• Solenoids dictate the speed and accuracy of needle selection; sub-millisecond response times are critical for high-gauge knitting.

• The Self-Hold Tuck Solenoid utilizes permanent magnets to maintain state, drastically reducing power consumption and thermal load.

• Evaluating solenoids requires balancing actuation force, stroke length, and heat dissipation capabilities against machine duty cycles.

• Premature failure is rarely a coil defect; it is most often caused by inadequate heat dissipation or mechanical binding from yarn dust and lubrication oil.

The Core Function of Solenoids in Needle Selection

Actuators serve a foundational purpose in modern textile equipment. They translate digital commands into physical force. The main control board generates rapid electrical pulses. The solenoid converts these incoming pulses into linear mechanical motion. This sudden motion pushes selectors, jacks, or directly drives needles into position. The conversion must happen flawlessly during every single carriage pass. Precision ensures the fabric structure forms exactly as designed.

Pattern execution demands absolute accuracy from these components. Multi-color jacquard and intarsia knitting rely on individual needle control. Every single loop matters for the final garment appearance. The actuators must engage and disengage specific needles independently. You cannot execute complex structural patterns otherwise. A single missed selection ruins the entire garment panel. Quality control teams often trace fabric defects back to slow actuator responses.

Timing and synchronization dictate overall equipment success. We must evaluate actuation speed relative to the carriage speed. Modern carriages travel across the needle bed at high velocities. The time window to fire a needle is incredibly narrow. Actuators require sub-millisecond response times to keep pace. Delay leads directly to catastrophic needle collisions. These crashes break needles and damage the needle bed. Properly synchronized actuators prevent these destructive mechanical failures.

Internal Structure and Actuation Mechanics

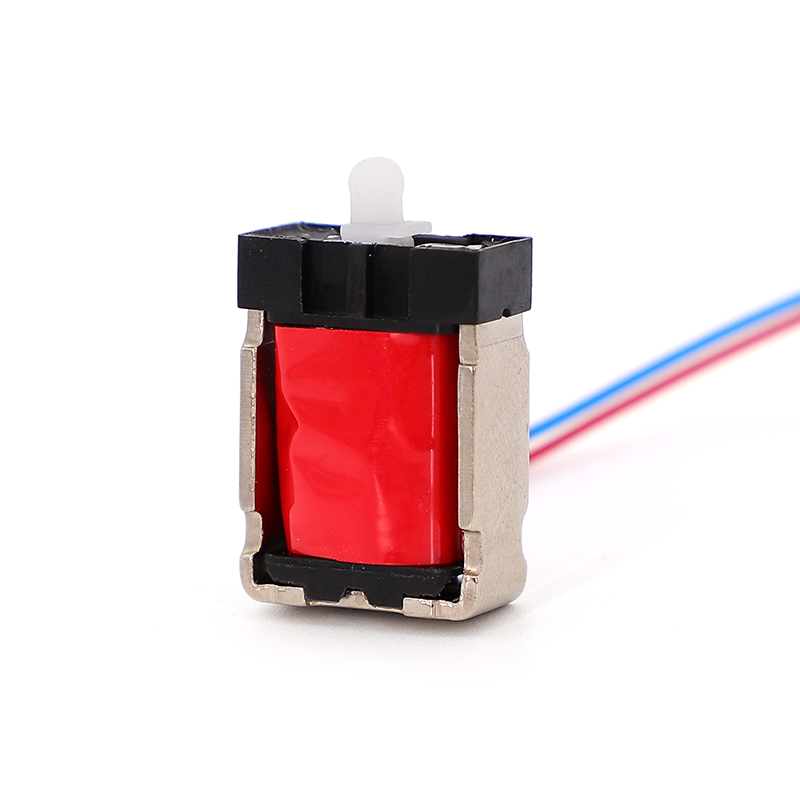

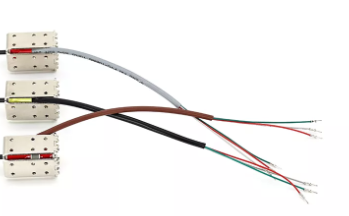

You must understand the internal architecture to evaluate part quality. Standard actuators contain four primary base components. An electromagnetic coil generates the necessary magnetic field. A movable armature, often called a plunger, performs the physical work. A return spring pushes this plunger back to its resting state. A robust outer housing protects these delicate internal mechanisms. These parts work together to deliver consistent mechanical strikes.

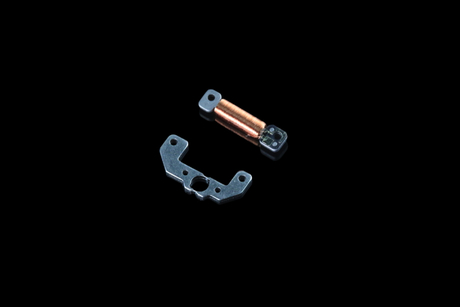

Material engineering dictates the overall durability of the unit. Manufacturers utilize high-permeability magnetic steel for the core. This specialized steel maximizes magnetic flux density efficiently. The internal copper wire requires high-grade thermal protection. We look for Class F or Class H insulation ratings. These ratings allow the wire to endure continuous operational heat. Continuous knitting cycles generate massive thermal stress. Proper materials prevent the internal coil from melting down prematurely.

The Role of the Self-Hold Tuck Solenoid

Traditional actuators draw continuous power to hold a position. This continuous draw generates excessive internal heat. The Self-Hold Tuck Solenoid solves this fundamental engineering problem. This innovative mechanism integrates a strong permanent magnet inside the housing. It only requires a brief current pulse to change states. The unit relies on residual magnetism to hold the plunger firmly in place. Another reverse electrical pulse releases the plunger back to zero.

This design offers massive operational advantages for factory floors. It achieves a drastic reduction in continuous power draw. Minimized power consumption directly minimizes coil heating. You experience highly stabilized performance during long tuck-stitch sequences. Cooler coils maintain lower electrical resistance. Lower resistance ensures the magnetic force remains exceptionally strong. These units drastically outperform traditional models during heavy, continuous production schedules.

Primary Applications Across Knitting Machine Types

Different equipment types require vastly different actuator specifications. We cannot apply a universal approach to procurement. Below is an application summary chart outlining specific mechanical demands.

Computerized sweater equipment relies on high-density banks of actuators. These systems execute complex jacquard and delicate pointelle transfers. The actuators must fit tightly together inside the carriage. Shoe upper equipment presents an entirely different challenge. Flyknit technology utilizes thicker, highly rigid synthetic yarns. These materials require high-impact force to manipulate. The components must punch through heavy mechanical resistance reliably.

Collar and cuff machines focus heavily on raw durability. These systems produce simpler, highly repetitive patterns continuously. They demand continuous short-stroke cycles without hesitation. The return springs face immense mechanical fatigue over time. You must prioritize spring quality and housing integrity for these specific applications. Matching the component to the machine type prevents early operational failures.

Evaluation Criteria: How to Specify and Procure the Right Solenoid

Selecting the correct component requires rigorous technical evaluation. You must review several specific data points before ordering. Follow these precise evaluation criteria to ensure optimal equipment performance.

1. Voltage and Power Consumption: Review the standard electrical specifications carefully. Most systems utilize 24VDC or 36VDC power supplies. Higher voltage generally delivers a faster mechanical response. However, higher voltage also generates significantly more heat. You must assess this tradeoff based on your cooling capabilities.

2. Stroke Length and Actuation Force: Match the push and pull force to your needle bed gauge. A fine 18G bed requires delicate, precise force. A heavy 3G bed requires massive mechanical punching power. Incorrect force causes either missed selections or broken needle butts.

3. Response Time Metrics: Define the maximum acceptable latency for your equipment. Measure this latency in exact milliseconds. High-speed carriage movements demand ultra-fast response times. Verify the manufacturer test data under real-world loads.

4. Thermal Stability and Heat Dissipation: Verify the continuous duty cycle ratings rigorously. Overheated coils increase internal electrical resistance rapidly. This resistance causes a severe drop in active magnetic force. A weak magnetic field results directly in missed needle selections.

Common Mistake: Buyers often prioritize the cheapest unit cost over thermal stability. Cheap units lack adequate heat dissipation features. They fail rapidly during 24-hour continuous production runs. You end up spending more on maintenance and lost production.

Best Practice: Always request thermal performance charts from your supplier. Verify how the magnetic force degrades as temperatures rise. Select units maintaining at least 85% force at peak operating temperatures.

Implementation Risks and Lifecycle Management

Proper installation and maintenance dictate component longevity. Even the best hardware fails under poor environmental conditions. Factory floors introduce severe environmental vulnerabilities. Knitting machines generate a fine, pervasive yarn dust. They also require constant lubrication oil for the needle bed. This mix of machine oil and yarn lint creates a thick paste. This sticky paste infiltrates the housing and causes plungers to stick.

Clearance and alignment issues present major installation risks. Improper alignment between the actuator bank and selector jacks causes damage. The plunger strikes the jack at an incorrect angle. This misalignment leads to rapid mechanical wear on both components. You will hear abnormal grinding noises during the carriage pass. Technicians must utilize precise feeler gauges during installation. Perfect alignment guarantees millions of trouble-free operational cycles.

Factory teams must establish strong predictive maintenance routines. We strongly advise moving away from reactive, run-to-failure mentalities. Establishing daily resistance checks catches failing coils early. Thermal monitoring identifies overheating units before they burn out. Rigorous maintenance ensures your Solenoid For Flat Knitting Machine performs consistently under stress. Replace components showing increased electrical resistance immediately. Proactive replacement prevents costly fabric defects and saves substantial money.

Conclusion

Electromechanical actuators are far more than basic commodity parts. They serve as precision instruments dictating your overall equipment effectiveness. Their operational speed and thermal stability directly impact fabric output. Understanding internal mechanics allows you to troubleshoot issues faster. Evaluating specific criteria ensures you procure the exact right part. Ignoring these details guarantees continuous production headaches and dropped stitches.

Your engineering teams must take proactive next steps. Advise procurement to demand rigorous lifecycle test data from suppliers. Look for units validated for tens of millions of continuous cycles. Request comprehensive thermal performance charts before authorizing bulk orders. Upgrading to permanent-magnet models reduces power draw and thermal load. Implement these strategies today to optimize your textile manufacturing operations.

FAQ

Q: What is the typical lifespan of a high-quality solenoid in a flat knitting machine?

A: Industry benchmarks suggest a premium unit lasts between 50 million and 100 million cycles. This translates to several years of continuous factory operation. Actual lifespan depends heavily on your operating conditions. Regular maintenance extends longevity significantly. You must keep the needle bed clean. Excessive oil and yarn lint degrade moving internal parts quickly.

Q: Why do solenoids overheat during production?

A: Actuators overheat due to demanding continuous duty cycles. High ambient factory temperatures exacerbate the problem. Standard units draw continuous electrical current to hold their position. This continuous current generates immense internal heat. Lacking self-holding permanent magnets forces the coil to work harder. Inadequate ventilation around the carriage also traps this generated heat.

Q: Can a self-hold tuck solenoid replace a standard solenoid directly?

A: Direct replacement is rarely possible without modifications. You face strict compatibility constraints regarding the machine control board logic. Pulse-driven self-hold units require entirely different electrical signaling. They need a forward pulse to actuate and a reverse pulse to release. Standard units require continuous current. You must verify control board compatibility before upgrading.

Q: How can I test if a knitting machine solenoid is failing?

A: You can implement a brief diagnostic framework. First, perform a multimeter resistance test across the coil terminals. Compare the reading to the manufacturer baseline. High resistance indicates internal wire degradation. Second, perform a mechanical push-test. Depress the plunger manually when powered off. Any grinding or binding indicates severe lint buildup or spring failure.
