How Measure Instrument Gear Impacts Accuracy in Precision Instruments

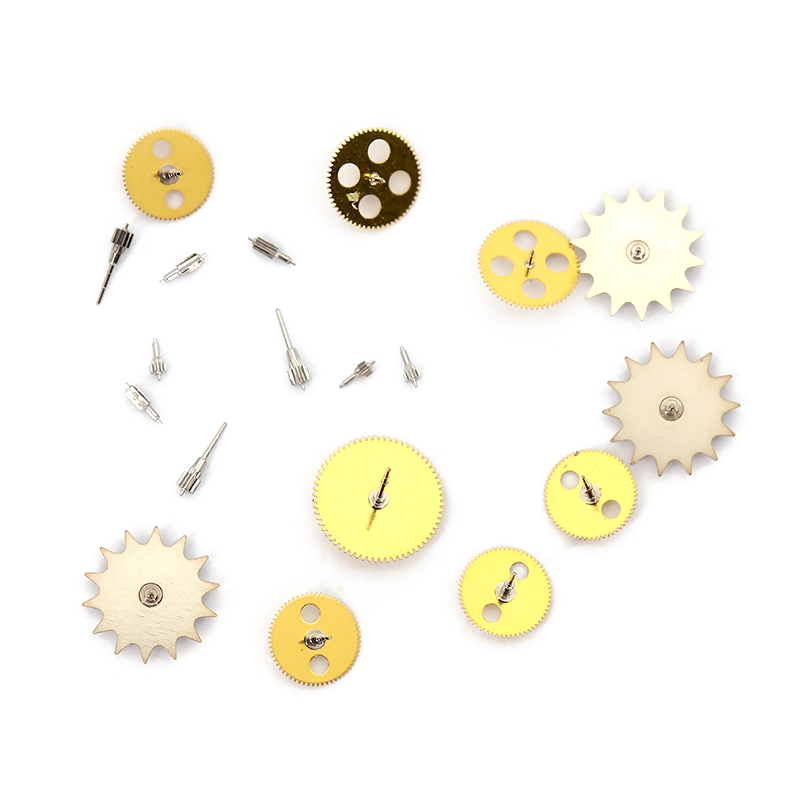

The reliability of any mechanical measuring instrument is fundamentally capped by internal component quality. From standard dial indicators to highly complex coordinate measuring machines, gearing precision establishes the absolute limit for performance. We must acknowledge this critical baseline before evaluating any metrology tool. Microscopic deviations in gear geometry compound rapidly into macro-level measurement errors. These structural flaws lead directly to skewed data. You subsequently face failed quality control checks and highly damaging product recalls. We cannot ignore these hidden mechanical variables.

Evaluating exact structural tolerances helps eliminate inconsistencies early in the design phase. We also need to carefully analyze material behaviors under operational stress. Establishing verifiable quality assurance processes ensures your selected Measure instrument gear performs reliably over its intended lifecycle. By examining these core engineering principles, you will discover how to stabilize instrument accuracy. You will learn actionable strategies to source better components and maintain consistent metrology baselines effectively.

Key Takeaways

• Accuracy vs. Precision: A gear system can deliver highly repeatable results (precision) that are consistently wrong (inaccuracy) if systematic errors like cumulative pitch deviation are not mitigated.
• Micro-Geometry Matters: Backlash, concentricity, and tooth profile errors are the primary culprits behind instrument hysteresis and measurement drift.
• Environmental Realities: Even ISO-certified gears will fail if thermal expansion coefficients and material wear rates are not matched to the instrument’s operating environment.
• Vendor Validation: Partnering with a verifiable measure instrument gear manufacturer requires demanding transparent, CMM-backed inspection reports rather than accepting marketing claims.

Core Gear Specifications That Drive Measurement Accuracy

Pitch Deviation and Cumulative Error

Minor spacing errors between gear teeth compound severely over a full rotation. We call this phenomenon cumulative pitch deviation. A single tooth spacing flaw might seem negligible during a short stroke. However, as the gear completes a 360-degree cycle, these micro-deviations accumulate. They directly translate into non-linear measurement discrepancies on your instrument dial. Operators observing the readout will notice varying levels of accuracy depending on the spindle's stroke position. Minimizing pitch deviation guarantees uniform motion transfer throughout the entire measuring range.

Tooth Profile and Lead Tolerances

Imperfect tooth shapes generate significant transmission errors within delicate mechanisms. An ideal involute curve ensures a constant velocity ratio between mating gears. When manufacturing flaws alter this profile, the gears push against each other unevenly. This inconsistency causes localized vibration and inconsistent motion transfer. In sensitive measuring equipment, these vibrations cause the indicator needle to flutter. You lose the ability to capture fine incremental readings. Strict lead tolerances ensure the tooth flank makes full, parallel contact across its entire width.

Managing Backlash and Hysteresis

Engineers constantly battle backlash when designing precise instruments. Backlash refers to the slight clearance between mating gear teeth. This gap allows the mechanism to reverse direction without jamming. Unfortunately, it also introduces hysteresis. Hysteresis prevents the instrument from returning to absolute zero after a measurement cycle. Zero-backlash designs utilize anti-backlash gears or spring pre-loading mechanisms to eliminate this gap.

• Best Practice: Balance backlash elimination against friction constraints carefully.
• Common Mistake: Applying excessive spring pre-load completely removes backlash but introduces high friction. Delicate measuring equipment loses tactile sensitivity under heavy friction loads.

Concentricity (Runout)

Concentricity demands keeping the gear’s pitch circle perfectly aligned to its rotational axis. We measure this alignment as radial runout. When a gear suffers from excessive runout, it essentially wobbles during operation. This eccentric motion pushes the mating gear further away during half the rotation and pulls it closer during the other half. It creates cyclical reading variations on the instrument. Maintaining strict concentricity limits prevents these rhythmic accuracy fluctuations.

Differentiating Accuracy from Precision in Gear-Driven Instruments

Defining the Metrology Baseline

We must clarify the technical distinction between accuracy and precision. Striking the exact true measurement defines accuracy. Delivering the identical measurement repeatedly defines precision. An instrument can easily be highly precise while remaining entirely inaccurate. A tight grouping of results far from the true target value indicates a precise but flawed system. Internal gearing directly dictates both parameters, but different types of mechanical errors affect them independently.

Systematic vs. Random Errors in Gearing

Understanding error types helps diagnose instrument failures quickly. We separate these issues into systematic and random categories.

Common Gear Error Classifications

The Pitfalls of Over-Engineering

Specifying absolute perfection yields diminishing returns if the broader architecture creates bottlenecks. Many buyers demand extreme gear tolerances while ignoring surrounding components. If the instrument housing flexes under operational pressure, a perfect gear will not correct the inaccurate reading. Low-quality bearings or improper user technique frequently represent the actual technical bottleneck. We recommend mapping the entire error budget before over-engineering the internal gearing. Match component tolerances realistically to the structural rigidity of the overall assembly.

Environmental and Implementation Risks in Metrology

Thermal Expansion Coefficients

Temperature fluctuations alter component dimensions aggressively. Metrology instruments often operate outside controlled laboratory environments. We must evaluate how ambient heat changes the gear's pitch diameter. Different materials react differently to thermal shifts. If the pinion gear and the main rack expand at vastly different rates, the instrument binds or develops excessive backlash.

Material Thermal Expansion Comparison

Wear, Friction, and Lubrication Limitations

Gear wear generates microscopic particulates over time. These metal or polymer shavings create severe risks. They act as abrasive compounds, accelerating further tooth degradation. Managing lubrication presents an equally frustrating challenge. Standard wet lubricants attract airborne dust rapidly. This dust congeals into a thick paste, altering the instrument's calibration and causing sticky mechanism travel. Dry lubricants like PTFE mitigate dust accumulation but eventually wear off. You must match the lubrication strategy strictly to the expected environmental contamination levels.

Corrosion and Chemical Exposure

Harsh industrial environments degrade precision instruments quickly. Metrology tools deployed near machining centers frequently encounter aggressive coolants and cutting fluids. Chemical exposure initiates micro-corrosion on standard steel gear teeth. This corrosion alters the exact involute profile, immediately destroying accuracy. We select specialized stainless alloys or chemically inert polymers for these deployments. Protecting the gear tooth surface integrity guarantees long-term calibration stability in caustic atmospheres.

Navigating Quality Standards and Compliance

Translating ISO, DIN, and AGMA Grades

Global metrology relies on standardized quality frameworks. We reference ISO, DIN, and AGMA grades to define acceptable manufacturing tolerances. A lower ISO number indicates tighter precision. Conversely, a higher AGMA number represents better quality. You must determine which specific class your application actually requires. Specifying an ISO Grade 4 master gear for a basic shop-floor caliper is unnecessary. ISO Grade 6 or Grade 8 often satisfies standard industrial requirements perfectly. Understanding these translations prevents critical specification errors during procurement.

Traceability and Calibration Standards

Metrology demands absolute traceability. You must link the gear’s dimensional data back to recognized national standards. Calibrating an instrument using unverified internal components nullifies its compliance. We follow specific steps to ensure continuous traceability:

1. Demand raw material certificates from the component vendor.
2. Require coordinate inspection data referencing specific ISO or AGMA tolerances.
3. Ensure the inspection equipment itself carries a current calibration certificate tied to a national metrology institute.
4. Log all batch data against the final assembled instrument serial number.

The Role of Independent Audits

Internal compliance protocols must align strictly with broader industry regulations. Organizations like GAMBICA provide comprehensive guidelines for instrumentation control. Localized weights and measures directives govern legal accuracy requirements. Independent audits verify your internal quality processes align with these external mandates. They expose hidden vulnerabilities in component sourcing. Passing external audits builds immediate trust with end-users relying on your metrology equipment.

Criteria for Evaluating a Measure Instrument Gear Manufacturer

CMM-Backed Inspection Protocols

You cannot accept theoretical marketing claims when sourcing metrology components. Partnering with a reliable Measure instrument gear manufacturer requires demanding absolute transparency. Insist they provide verifiable Coordinate Measuring Machine (CMM) reports for every gear batch. These reports must detail the exact tooth profile, pitch deviation, and radial runout. Analytical gear inspection validates the manufacturing process objectively. If a vendor hesitates to supply raw CMM data, you should immediately disqualify them from your supply chain.

Prototyping and Custom Engineering Capabilities

Precision metrology rarely relies entirely on off-the-shelf catalog parts. Instrument designs often require unique ratios, specialized mounting hubs, or proprietary anti-backlash spring tensioning. Assess the vendor's ability to iterate on complex micro-gears rapidly. A capable partner assigns dedicated engineers to review your custom tooling requirements. They should recommend geometry optimizations before cutting the first prototype. This collaborative engineering approach ensures the final component integrates seamlessly into your specific instrument architecture.

Supply Chain Stability and Defect Rates

Long-term production consistency defines a successful supplier relationship. Evaluate their historical yield rates carefully. High internal defect rates suggest unstable manufacturing processes. This instability inevitably bleeds into your assembly line. You must also review their contingency plans for raw material shortages. A robust manufacturer maintains secondary material sources and sufficient buffer inventory. Ensuring long-term production runs remain consistent protects your delivery schedules and maintains your brand reputation.

Conclusion

True measurement accuracy represents a systemic output rather than a single component trait. It relies heavily on structural integrity, material suitability, and verified internal gear quality. You cannot achieve reliable metrology baselines if you tolerate excessive pitch deviation or ignore thermal expansion risks. Buyers must move past theoretical tolerances quickly. We must demand strict, documented compliance from the entire supply chain. Proactively engineering out backlash and concentricity errors prevents costly measurement drift.

Your next step requires practical action. We recommend auditing your current instrument failure rates immediately. Identify whether hysteresis or random accuracy errors dominate your quality control logs. Contact your shortlisted vendors and request detailed inspection samples backed by comprehensive CMM data. Upgrading your internal mechanical standards today secures flawless metrology performance tomorrow.

FAQ

Q: What is the most common cause of measurement hysteresis in gear-driven instruments?

A: Backlash and mechanical friction represent the primary causes of hysteresis. When mating gear teeth exhibit loose clearance (backlash), the mechanism hesitates during directional changes. Additionally, internal friction prevents the indicator mechanism from returning to absolute zero smoothly after completing a measurement cycle.

Q: How do thermal changes affect the accuracy of a measure instrument gear?

A: Temperature shifts force metal or polymer gears to expand or contract. This thermal reaction physically alters the gear's pitch diameter and center distance. These microscopic dimensional changes introduce systematic measurement errors, causing the instrument to read progressively higher or lower as ambient temperatures fluctuate.

Q: Does a higher AGMA or ISO gear grade always guarantee better instrument accuracy?

A: No. While higher grades guarantee tighter component manufacturing tolerances, they do not guarantee overall instrument accuracy. If the surrounding housing flexes, the bearings exhibit play, or environmental conditions fluctuate wildly, even the highest-grade gear cannot compensate for those external mechanical failures.
