What turns an electrical signal into precise mechanical motion?A Solenoid For Flat Knitting Machine performs this task during automated knitting operations.In this article, you will learn what a solenoid does, how it works, and why it matters for needle selection, yarn control, and machine stability.
A solenoid is an electromagnetic actuator. It creates mechanical movement after receiving electrical power.
Its main components usually include a coil and movable armature. Some designs also contain springs, magnetic cores, housings, and mounting structures.
When current enters the solenoid coil, a magnetic field forms. This field moves the armature toward a controlled position.
That movement can then operate another machine component.
Electrical energy alone cannot move a knitting needle mechanically. The machine needs an actuator between its controller and moving components.
The solenoid performs this conversion.
The control board first sends an electrical signal. Current then passes through the electromagnetic coil. The magnetic force moves the internal armature.
This motion may be short, but it can be very precise.
That is the basic solenoid function found across automation equipment.
A solenoid allows the machine controller to operate mechanical parts electronically.
This removes the need for manual adjustment during every cycle.
The controller decides when movement should occur. The solenoid responds to that instruction. It then activates the connected mechanism.
This makes the solenoid actuator useful in computerized production equipment.
Many machine operations happen within short time windows.
A solenoid can engage quickly after receiving power. It can also release quickly after the signal changes.
Fast response becomes important during repetitive machine cycles. A delayed response may cause the mechanism to miss its required position.
In knitting machinery, timing errors can affect needle selection or yarn handling.
Not every solenoid performs the same movement.
Some create pulling motion. Others provide pushing motion. Self-holding designs can maintain a required position after activation.
The correct design depends on the machine mechanism.
Force also matters. The solenoid must overcome the mechanical resistance within its operating stroke.
Too little force may cause incomplete engagement.
Computerized equipment depends on repeatable movement.
The same electrical instruction should create the same mechanical response. A stable electromagnetic actuator helps maintain this repeatability.
It becomes especially important during high-cycle production.
Small variations can accumulate into production problems. Consistent movement helps machines maintain predictable operating sequences.
Electromagnetic control can simplify some machine mechanisms.
It allows electronic signals to create movement near the required component. This can reduce the need for complex mechanical transmission paths.
Compact construction is another benefit.
A linear solenoid can create useful motion within a limited installation area. This makes it suitable for densely arranged industrial equipment.
Tip： Solenoid selection should begin with the required movement, not only the external dimensions.
The purpose becomes more specific inside computerized knitting equipment.
A flat knitting machine must coordinate many small actions. Needles must move at the correct time. Yarn carriers must reach planned positions. Tuck operations must occur correctly. Color changes must remain synchronized.
Different solenoids can support these functions.
YANTAI XINYANG lists several solenoid types for computerized flat knitting equipment. Its range includes needle, tuck, yarn carrier, and color-change designs.
Buyers can review the broader Solenoid For Flat Knitting Machine product range when comparing these functions.
Needle selection determines which needles participate during a knitting sequence.
The controller sends a signal according to the programmed pattern. The needle selection solenoid converts that signal into movement.
It then activates the relevant selection mechanism.
Accurate needle control is especially important for complex patterns. Incorrect selection may cause missed stitches or pattern errors.

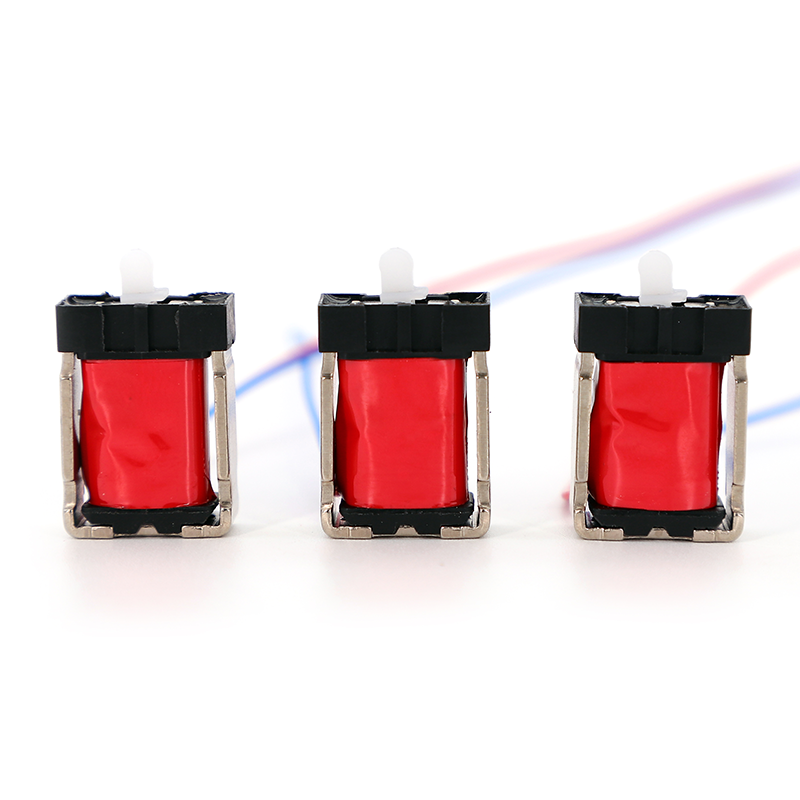

The 0119N Needle Solenoid Fast-Response provides one example of this application. The official product information identifies it as a computerized flat knitting machine needle selection component.
Yarn carriers deliver yarn into the required knitting area.
Their position must follow the programmed production sequence. Certain solenoids help control or maintain these positions.
A self-hold design can be useful here.
It can maintain a required mechanical state after activation. This reduces the need for continuous actuation in suitable mechanisms.
XINYANG's 0940N Self-Hold Yarn Solenoid is designed for yarn-carrier control in computerized flat knitting machines.
Tucking creates specific stitch structures during knitting.
The machine must activate the relevant mechanism at precise points. A tuck solenoid helps produce this mechanical action.
The solenoid must respond consistently during repeated cycles.
Unstable movement may produce incomplete engagement. This can affect stitch structure or fabric consistency.
The 0735N Self-Hold Tuck Solenoid illustrates a specialized solenoid designed for this function.
Multi-color knitting requires coordinated yarn switching.
A color-change solenoid activates the corresponding mechanical mechanism. It allows the control system to change yarn selections automatically.
Timing remains important during every change.
Late engagement can disrupt the planned knitting sequence. Accurate movement supports cleaner transitions between programmed colors.
The 0951N model on XINYANG's site is designed specifically for color-change control.
Tip： When ordering replacement solenoids, identify the exact machine function before comparing part dimensions.
The knitting machine solenoid working principle follows electromagnetic fundamentals.
It uses current, magnetism, and mechanical movement in a controlled sequence.
The process begins when the machine supplies electrical power.
Current passes through the wound coil. The coil produces a magnetic field around its core.
Coil design affects the electromagnetic response.
Wire material, resistance, winding quality, and operating voltage all influence performance.
Copper is commonly used because it offers good electrical conductivity.
The magnetic field acts on the movable metal armature.
The armature then moves through a defined stroke. This movement activates the connected machine mechanism.
The distance may only be several millimeters.
However, small differences can matter in precision machinery.
This explains how a knitting machine solenoid works. An electronic command becomes a repeatable physical action.
After activation, the mechanism must either return or remain engaged.
Traditional designs may use spring return. The armature returns when electrical power stops.
Self-holding designs work differently.
They are designed to retain a mechanical state after activation. This makes them useful for certain yarn, tuck, and color-control systems.
The exact method depends on the solenoid design.
A computerized knitting machine performs many coordinated actions every second.
The solenoid connects digital control to physical movement.
Without reliable actuation, programmed commands cannot become accurate mechanical operations.
Production speed increases the importance of response time.
Every actuator must operate inside the machine cycle. A delayed action can fall outside the intended sequence.
This can affect the needle or yarn mechanism.
A suitable computerized flat knitting machine solenoid must therefore provide consistent response under its specified operating conditions.
Accuracy requires more than fast movement.
The solenoid must repeatedly reach the correct mechanical position.
Stable stroke and force help maintain this repeatability. They reduce variation between operating cycles.
This becomes important when the same pattern runs across large production quantities.
Flat knitting machines contain many closely arranged components.
Space inside the working area is limited. Large actuators may interfere with surrounding mechanisms.
Electromagnetic solenoids can provide useful force in compact structures.
A properly designed flat knitting machine electromagnetic actuator can therefore fit into dense mechanical assemblies.
Factories also care about operating continuity.
A failed actuator can stop the related knitting function. The operator may then need to pause production.
Frequent interruptions increase maintenance costs.
Stable coil performance and smooth armature movement help reduce avoidable downtime.
Tip： For bulk purchasing, evaluate response consistency across batches instead of testing only one sample.
Different machine functions require different actuator designs.
The table below summarizes common examples.
Solenoid Type | Main Function | Key Selection Focus |
|---|---|---|
Needle selection solenoid | Controls needle selection | Response speed and stroke |
Yarn carrier solenoid | Controls yarn-carrier action | Holding stability and compatibility |
Tuck solenoid | Activates tuck mechanisms | Reliable engagement and force |
Color-change solenoid | Controls yarn color switching | Timing and repeatability |
These solenoids support programmed needle selection.
They must respond quickly during changing knitting patterns. Their dimensions must also match the machine mechanism.
An unsuitable stroke can prevent full engagement.
These components help control yarn carrier positions.
The self-hold function is useful where the mechanism must remain engaged after activation.
Buyers should compare holding behavior and installation dimensions.
Tuck solenoids control mechanisms related to tuck stitch formation.
They require stable movement during repeated production cycles.
Mechanical compatibility is especially important.
These solenoids activate color-changing mechanisms.
They help computerized machines switch yarn selections according to programmed patterns.
Repeatable response supports consistent multi-color production.
The correct solenoid cannot be selected by appearance alone.
Electrical and mechanical specifications must match the application.
Competitor product guidance also highlights voltage, current, resistance, stroke, duty cycle, push-or-pull operation, mounting direction, temperature, and humidity as selection factors.
Start with the machine's electrical requirements.
Rated voltage must match the control circuit. Current demand must remain suitable for the driver circuit.
Coil resistance also affects electrical behavior.
Using the wrong electrical specification can produce weak actuation or excessive heating.
Never assume every model uses the same voltage.
Stroke describes how far the armature moves.
The required stroke depends on the mechanical mechanism.
Operating force must also be sufficient.
A solenoid may energize normally but still fail mechanically. This happens when the generated force cannot overcome resistance.
Duty cycle describes how long the solenoid remains energized.
It also relates to repeated operating patterns.
High-frequency machinery places greater thermal stress on the coil.
A suitable design must tolerate the intended operating cycle.
Continuous-duty and intermittent-duty components should not be treated as identical.
Installation conditions also affect selection.
Check horizontal or vertical mounting requirements. Confirm available installation space and fixing dimensions.
Temperature and humidity also matter.
Textile environments may contain lint, dust, oil, and continuous vibration.
The selected component should match those conditions.
A correct replacement must match the machine electrically and mechanically.
Price alone should not guide the decision.
First determine what the solenoid controls.
Is it selecting needles?
Does it operate a yarn carrier?
Does it control a tuck mechanism or color change?
These functions require different designs.
The XINYANG product catalog shows several dedicated solenoid models alongside other computerized knitting components.
Record the original part information before ordering.
Important data includes:
Rated voltage
Operating current
Coil resistance
Stroke
Required force
Duty cycle
Push or pull direction
Connector configuration
Do not substitute a component based on voltage alone.
Two 24V solenoids may have very different mechanical characteristics.
Measure the installation interface carefully.
Check screw spacing, housing dimensions, armature position, connector direction, and available clearance.
Machine model information should also be supplied.
Photos of the original component can help the supplier verify details.
B2B buyers should look beyond initial unit cost.
Frequent replacement creates labor costs and production interruptions.
Stable electromagnetic performance is more valuable during continuous operation.
Ask suppliers about inspection methods and batch consistency.
XINYANG states that finished components undergo checks including electromagnetic attraction and response-speed testing.
Tip： Send the original model number, voltage, dimensions, photos, and machine model when requesting quotations.
Solenoid problems can appear as electrical or mechanical symptoms.
Some failures are obvious. Others appear first as unstable knitting performance.
A weak solenoid may respond slowly.
Possible causes include incorrect voltage, damaged coils, contamination, worn mechanical parts, or excessive resistance.
The actuator may move only part of its required stroke.
This creates incomplete engagement.
A malfunctioning solenoid can prevent the controlled mechanism from responding correctly.
Needles may not be selected at the intended time.
A yarn carrier may fail to reach its required state.
The problem can appear similar to a programming fault.
Technicians should therefore check both control signals and mechanical response.
Excessive coil temperature should not be ignored.
Incorrect voltage can increase electrical stress.
An unsuitable duty cycle may also create excessive heating.
Dust or blocked movement can make conditions worse.
Continued operation may eventually damage the coil.
Intermittent failures are often harder to diagnose.
The solenoid may work correctly during some cycles. It may respond slowly during others.
This inconsistency can create occasional fabric defects.
It can also cause unexplained production stops.
Operators should inspect the electrical input and mechanical movement separately.
The purpose of a solenoid is straightforward. It converts electrical control into mechanical movement.
Its importance becomes greater inside automated textile machinery.
A Solenoid For Flat Knitting Machine can support needle selection, yarn-carrier positioning, tuck functions, and color changes. It allows the computerized controller to operate these mechanisms quickly and repeatedly.
The table below summarizes the main relationship.
Input | Solenoid Action | Machine Result |
|---|---|---|
Electrical signal | Magnetic field forms | Armature begins moving |
Magnetic force | Armature completes its stroke | Mechanism engages |
Control signal changes | Solenoid releases or holds | Machine continues its sequence |
Repeated signals | Controlled repeated motion | Automated knitting operation |
The correct component must match its exact application. Voltage alone is not enough.
Buyers should also evaluate current, resistance, force, stroke, duty cycle, mounting, and machine compatibility.
For sourcing options, buyers can explore YANTAI XINYANG Electronics and its dedicated flat knitting machine component range. The company supplies textile solenoids alongside needles, jacks, and other precision components.
Choosing the right solenoid supports stable machine timing. It also reduces unnecessary replacement and production interruptions.
For OEM orders or replacement sourcing, provide complete operating specifications before requesting a quotation.
A solenoid converts electrical signals into precise mechanical movement. In flat knitting machines, it supports needle selection, yarn control, tuck functions, and color changes.
YANTAI XINYANG Electronics provides solenoids for computerized flat knitting machines. Its products support fast response, stable movement, and reliable machine operation.
Choosing the correct voltage, stroke, force, and duty cycle helps improve production stability and reduce maintenance risks.
A: It converts electrical signals into precise mechanical movement for knitting operations.
A: Its coil creates magnetic force, moving an armature to control machine functions.
A: It supports fast response, repeatable motion, and stable automated knitting.
A: Price depends on voltage, stroke, force, model, and order quantity.
A: Compact design enables quick, accurate, electronically controlled movement.
A: Common causes include overheating, incorrect voltage, coil damage, or mechanical resistance.
