How to Check a Solenoid on a Starter?

A starter solenoid is a small electromagnetic component that plays a critical role in starting systems. Although it has a compact structure, it must complete several important functions at the same time, including receiving an electrical signal, generating magnetic force, moving internal mechanical parts, and controlling a high-current circuit. When any of these processes fail, the starter system may stop working or operate inconsistently.

Many starting problems are incorrectly diagnosed because symptoms from different components can look similar. A weak battery, damaged cable, faulty ignition switch, worn starter motor, and defective solenoid may all create similar situations. Therefore, replacing parts without testing can increase repair costs and may not solve the real problem.

Learning how to check a solenoid on a starter allows technicians to identify the actual condition of the component through measurable methods. Voltage testing, resistance measurement, continuity checking, and functional inspection provide different information about electrical performance and mechanical operation.

The same electromagnetic principles are also widely used in industrial applications. Textile machinery, automation equipment, electronic devices, and precision mechanisms require solenoid components that provide stable force, accurate movement, and long operating life.

Yantai Xinyang Electronics Co., Ltd. specializes in customized electronic components and precision manufacturing solutions. The company supports applications requiring reliable electromagnetic control, precise mechanical movement, and consistent production quality.

How Does a Starter Solenoid Work?

A starter solenoid works as an electromagnetic switching device that converts electrical energy into mechanical movement. Its main function is to use a small control signal to activate a larger electrical circuit. This design allows the starting system to control high current without requiring the ignition switch or control circuit to handle the full electrical load.

Inside the solenoid, the coil creates a magnetic field when current passes through the winding. The generated magnetic force pulls or pushes the internal plunger, which then changes the position of electrical contacts and activates the starter mechanism. This process happens quickly, but it requires accurate electrical and mechanical coordination.

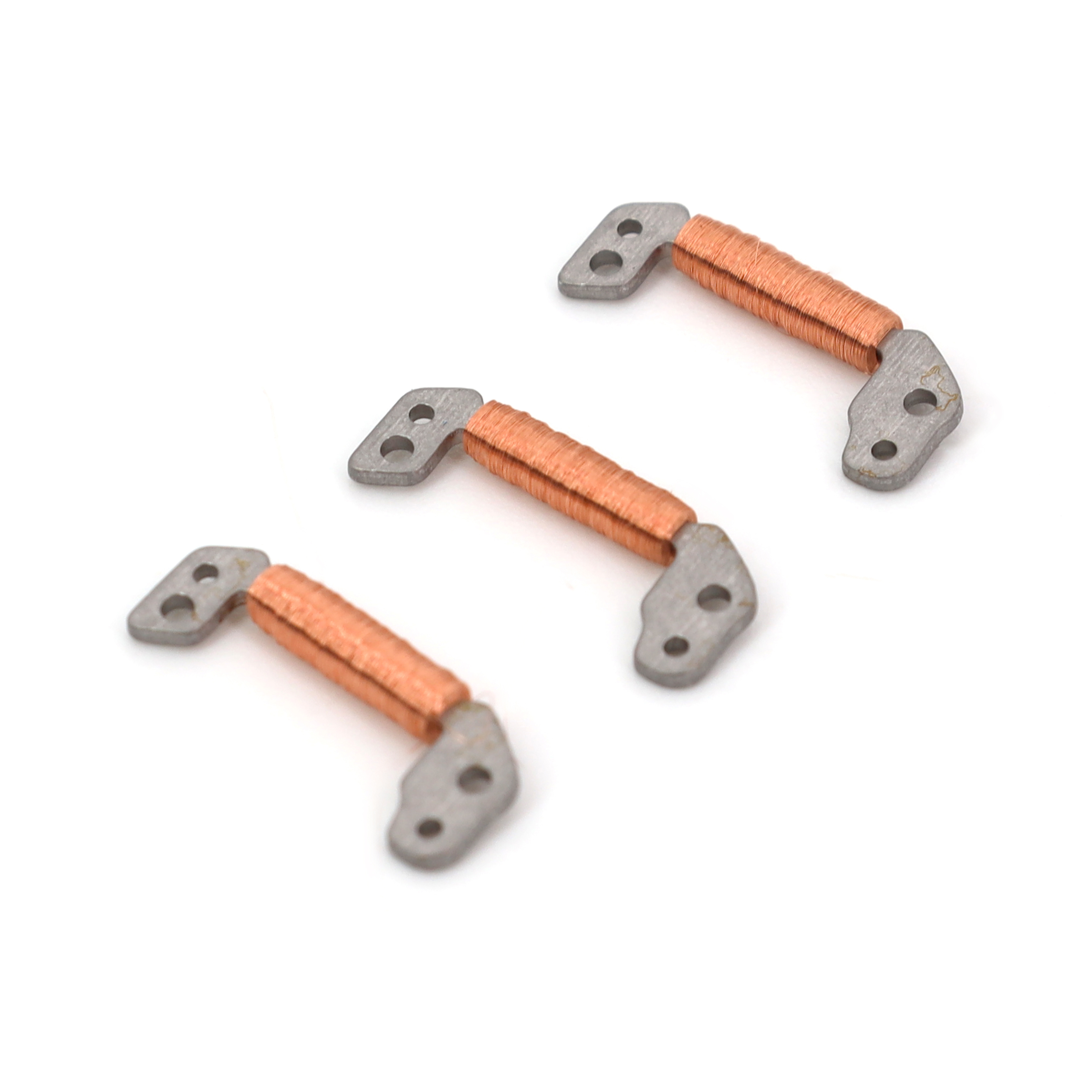

The coil is one of the most important parts of the solenoid because it determines the strength of the magnetic field. Factors such as wire diameter, winding structure, resistance value, insulation material, and operating voltage directly influence performance. A damaged coil may produce weak magnetic force, excessive heat, or complete loss of movement.

The mechanical structure also affects reliability. The plunger needs to move smoothly, the spring needs to provide proper return force, and internal components must maintain correct alignment during repeated operation. If friction increases or components become worn, the solenoid may respond slowly or fail intermittently.

Industrial solenoid applications require even higher precision because many components operate continuously. For example, a solenoid for flat knitting machine must maintain accurate movement timing during repeated knitting cycles. Any instability in electromagnetic response may affect machine efficiency and final product consistency.

Common Signs That a Starter Solenoid Needs Testing

A faulty starter solenoid does not always fail completely. In many cases, the component continues working intermittently, which makes troubleshooting more difficult. A vehicle or machine may start normally under one condition but fail under another because temperature, electrical load, or internal resistance changes during operation.

One common symptom is a clicking sound without actual starter movement. Many users assume this means the solenoid is working correctly, but the sound only indicates that the internal mechanism moves. It does not confirm that the electrical contacts can transfer enough current to the starter motor.

Another common problem is intermittent operation. A solenoid with worn contacts may work several times before failing because the contact surface condition changes during operation. Similarly, a damaged coil may sometimes generate enough magnetic force and sometimes fail depending on temperature and voltage conditions.

Typical symptoms include:

These symptoms should not be evaluated separately. A clicking sound, for example, may come from a weak battery rather than a defective solenoid. A slow response may result from mechanical friction rather than electrical failure.

A complete diagnostic process should therefore check the entire system, including the power supply, wiring, control signal, and solenoid itself.

How to Check a Solenoid on a Starter Using Electrical Tests

Electrical testing is one of the most reliable ways to evaluate starter solenoid condition. Instead of depending only on symptoms, technicians can use measurement data to determine whether the component is receiving power and performing correctly.

A digital multimeter is commonly used because it can measure voltage, resistance, and continuity. Each test focuses on a different part of the solenoid’s operation.

Checking the Solenoid Voltage Supply

The first step is confirming that the solenoid receives the correct voltage signal. Without sufficient electrical input, the coil cannot generate enough magnetic force to move the internal mechanism.

During testing, the multimeter is set to DC voltage mode. The technician checks the voltage at the solenoid terminals while the starting system is activated.

If the voltage is lower than expected, the solenoid may not be the actual problem. Possible causes include:

• Weak battery output

• Corroded terminals

• Damaged cables

• Poor grounding

• Faulty switches

• Relay problems

This step is important because a perfectly manufactured solenoid cannot operate correctly without stable electrical power.

Testing Coil Resistance

The coil resistance test checks whether the internal winding is electrically normal. Since the coil creates the magnetic field, any internal damage can directly affect solenoid performance.

The testing process usually includes disconnecting the power supply, setting the multimeter to resistance mode, and measuring across the coil terminals.

A very high resistance reading usually indicates an open circuit. This means the electrical path inside the coil has been interrupted.

A very low resistance reading may indicate a short circuit. In this situation, current may flow incorrectly and generate excessive heat.

The correct resistance value depends on the solenoid design, voltage rating, coil structure, and intended application. Industrial solenoid manufacturers carefully control these parameters because small electrical differences can influence response speed and service life.

Performing Continuity Testing

Continuity testing checks whether electricity can pass through a specific circuit path. It is useful for identifying broken connections or switching problems.

However, continuity alone does not guarantee that a solenoid will perform correctly under actual operating conditions.

A component may show normal continuity but still fail because internal contacts create excessive resistance when carrying current. Mechanical movement may also become unstable under load.

For this reason, professional testing combines multiple methods instead of relying on one measurement.

Tip: The most accurate solenoid diagnosis combines electrical testing with mechanical inspection because both systems directly affect performance.

Mechanical Inspection and Bench Testing

After electrical testing, mechanical inspection provides additional information about solenoid condition. A solenoid may have correct electrical readings but still fail because internal movement is restricted.

Bench testing allows technicians to evaluate the solenoid separately from the original system. During this process, the component receives the correct voltage while movement, sound, and switching performance are observed.

A healthy solenoid should activate quickly and smoothly. The plunger should move without hesitation, and the internal mechanism should return correctly after power is removed.

Common mechanical problems include:

• Plunger sticking

• Weak spring force

• Internal contamination

• Excessive friction

• Misalignment

• Component wear

These problems become more serious in industrial environments where solenoids operate thousands of times during normal production.

For example, textile equipment using a solenoid for flat knitting machine requires consistent movement accuracy over long operating periods. A component that performs well during a single test may still fail if it cannot maintain stability during continuous cycles.

This is why industrial solenoid evaluation often includes endurance testing, cycle testing, and performance verification.

Factors That Cause Starter Solenoid Failure

Understanding why a starter solenoid fails is important because it helps technicians diagnose problems faster and helps manufacturers improve product reliability. A solenoid is not only an electrical switch. It is a combination of electromagnetic design, mechanical structure, and material performance. Any weakness in these areas can affect the final operating result.

One of the most common failure reasons is coil damage. The coil must generate a stable magnetic field every time the solenoid receives an electrical signal. However, long-term operation, excessive current, incorrect voltage, or insufficient heat dissipation can gradually damage the winding insulation. Once the coil performance decreases, the solenoid may produce weaker force or fail completely.

Temperature is another important factor. When a solenoid operates beyond its designed duty cycle, continuous heat accumulation may accelerate insulation aging and reduce service life. For industrial equipment, engineers must consider operating frequency, activation duration, and environmental temperature before selecting a suitable solenoid.

Mechanical wear is also a major cause of failure. The internal plunger, spring, and contact components experience repeated movement during operation. Over time, friction, vibration, and material fatigue may affect movement accuracy. A small mechanical change can create delayed response, unstable operation, or incomplete activation.

Precision manufacturing is especially important for compact electromagnetic components. Products involving precision gears require strict dimensional control because small errors can affect transmission accuracy and mechanical stability. The same principle applies to solenoid assemblies, where consistent tolerances help maintain reliable movement.

Environmental conditions can further influence solenoid performance. Components used in factories, outdoor equipment, or machinery environments may face dust, moisture, vibration, and temperature changes. A suitable design must consider protective materials, sealing structure, and operating conditions to achieve long-term reliability.

Industrial Applications of Solenoid Technology

Although starter solenoids are commonly associated with automotive systems, electromagnetic solenoid technology is used across many industries. Their ability to convert electrical signals into controlled mechanical movement makes them suitable for applications requiring fast response and accurate positioning.

Industrial solenoids are widely used in automation equipment, textile machinery, electronic products, measuring instruments, and precision mechanisms. Different applications require different specifications, including voltage rating, force output, stroke distance, response time, and operating cycle life.

Solenoid Applications in Textile Machinery

Textile machinery is an industry where solenoid reliability directly affects production performance. Modern knitting equipment requires highly accurate control because every mechanical movement influences the final fabric quality.

A solenoid for flat knitting machine provides electromagnetic control for specific machine actions. It must respond quickly and maintain stable movement during repeated production cycles.

Compared with ordinary applications, textile machinery creates higher demands because the component may operate continuously for extended periods. A reliable solenoid needs:

• Stable electromagnetic force

• Fast response speed

• High cycle durability

• Accurate mechanical movement

• Consistent production quality

If a solenoid response becomes unstable, it may interrupt machine operation, reduce efficiency, or affect product consistency. Therefore, manufacturers focus heavily on material selection, coil performance, and mechanical precision during production.

Solenoid Applications in Precision Electronic Systems

Many electronic devices require compact components that can provide accurate movement control. Solenoids are often combined with mechanical transmission systems to create reliable and precise operations.

For example, systems using precision gears depend on accurate manufacturing to achieve smooth movement and stable positioning. When electromagnetic components work together with precision mechanical parts, the entire system can achieve better control and efficiency.

These technologies are commonly found in:

• Automation equipment

• Electronic instruments

• Control systems

• Compact mechanical devices

The performance of the final product depends on the quality of every individual component. A reliable solenoid combined with accurate mechanical transmission can improve overall system durability.

Solenoid Technology in Watch Movement Systems

Miniature timing devices represent another field where precision manufacturing is essential.

A quartz watch movement combines electronic timing control and mechanical transmission to maintain accurate operation. Although the application is different from starter systems, both rely on stable electrical control and precise mechanical performance.

Small components used in watch mechanisms require extremely strict manufacturing accuracy because tiny dimensional differences may influence timing precision.

This type of application demonstrates the importance of advanced manufacturing capability. Whether producing automotive components, industrial solenoids, or miniature electronic mechanisms, consistent quality control is essential.

How to Choose the Right Solenoid Supplier

For industrial buyers, selecting the right solenoid supplier is as important as selecting the correct product specification. A supplier should not only provide components but also understand application requirements and engineering challenges.

A reliable manufacturer should have experience in:

• Electromagnetic design

• Coil development

• Precision machining

• Component assembly

• Performance testing

• Custom manufacturing

Standard solenoids may not always meet specific application requirements. Different industries may require customized solutions based on operating voltage, force requirements, installation space, response speed, and service life.

For example, a textile machine manufacturer may require a compact solenoid that can withstand millions of operating cycles. An electronic device manufacturer may prioritize miniature size and precise movement control.

Before selecting a supplier, buyers should evaluate:

• Manufacturing capability

• Quality inspection process

• Material control

• Customization experience

• Production consistency

A strong supplier should provide technical support during product development instead of only delivering finished components.

Yantai Xinyang Electronics Co., Ltd. focuses on customized electronic component manufacturing and provides solutions for industries requiring reliable electromagnetic performance and precision production.

How to Improve Solenoid Reliability During Product Design

Solenoid reliability should be considered during the design stage rather than after failure occurs. Proper component selection and engineering planning can significantly improve service life.

The first consideration is choosing the correct electrical specifications. A solenoid should operate within its rated voltage and duty cycle range. Incorrect voltage can cause weak movement, excessive heat, or premature failure.

Engineers should evaluate:

• Operating frequency

• Activation duration

• Required force

• Response speed

• Environmental conditions

Mechanical load matching is another important factor. A solenoid should provide sufficient force for the connected mechanism without excessive stress. Overloading the component may increase wear and shorten service life.

Heat management is also critical. Since coils naturally generate heat during operation, product design should consider insulation materials, ventilation conditions, and operating time.

Environmental protection should also be considered. Applications involving moisture, dust, vibration, or chemicals may require additional protective measures to maintain stable performance.

A carefully designed solenoid system improves reliability, reduces maintenance requirements, and helps manufacturers achieve better long-term product performance.

Conclusion

Knowing how to check a solenoid on a starter helps technicians accurately identify electrical and mechanical problems before replacing components. Voltage testing confirms whether the solenoid receives sufficient power. Resistance testing evaluates coil condition. Continuity testing checks electrical paths, while bench testing verifies actual mechanical operation.

However, reliable solenoid performance depends on more than troubleshooting methods. Product design, manufacturing precision, material selection, and quality control all influence service life and operational stability.

The same electromagnetic technology used in starter systems is also applied in industrial applications. A solenoid for flat knitting machine requires fast response and long-cycle durability. Components using precision gears require accurate mechanical transmission. Products such as quartz watch movement require extremely precise electronic and mechanical coordination.

Yantai Xinyang Electronics Co., Ltd. provides customized electronic components and precision manufacturing solutions for industries requiring stable electromagnetic control, accurate movement, and dependable production quality.

FAQ

Q: How do you check a solenoid on a starter?

A: Check the power supply first, then test voltage, coil resistance, continuity, and mechanical movement to determine whether the solenoid works correctly.

Q: Can a multimeter test a starter solenoid?

A: Yes. A multimeter can measure voltage, resistance, and continuity to identify common electrical problems such as open coils or unstable connections.

Q: Why does a starter solenoid click but not work?

A: A clicking sound means the solenoid receives a signal, but worn contacts, low voltage, damaged wiring, or mechanical problems may prevent proper operation.

Q: What causes starter solenoid failure?

A: Common causes include coil damage, overheating, incorrect voltage, contact wear, mechanical friction, and environmental stress.

Q: What is a solenoid for flat knitting machine?

A: A solenoid for flat knitting machine is an electromagnetic component designed to control precise mechanical movements in textile production equipment.

Q: Why are precision gears important in electronic systems?

A: Precision gears provide accurate transmission and stable movement for compact mechanical systems requiring high reliability.

Q: What is quartz watch movement?

A: Quartz watch movement combines electronic timing control and precision mechanical components to maintain accurate timekeeping.
